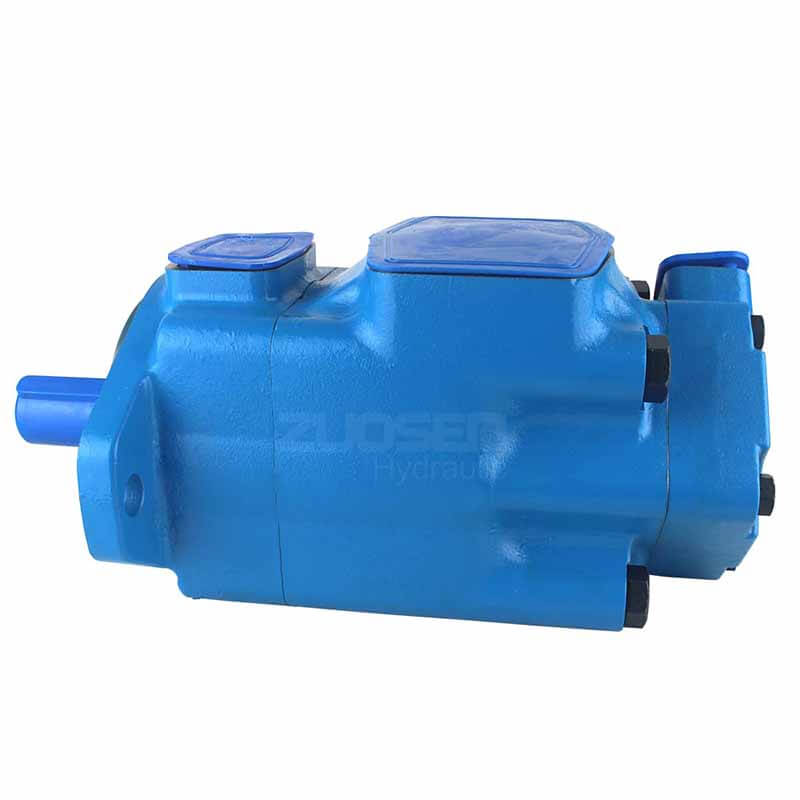

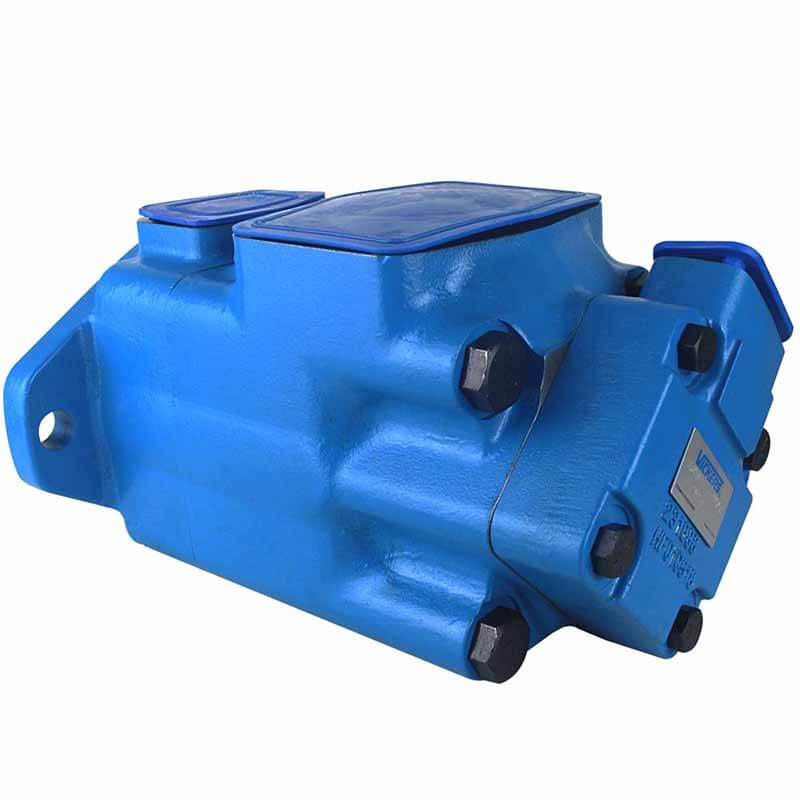

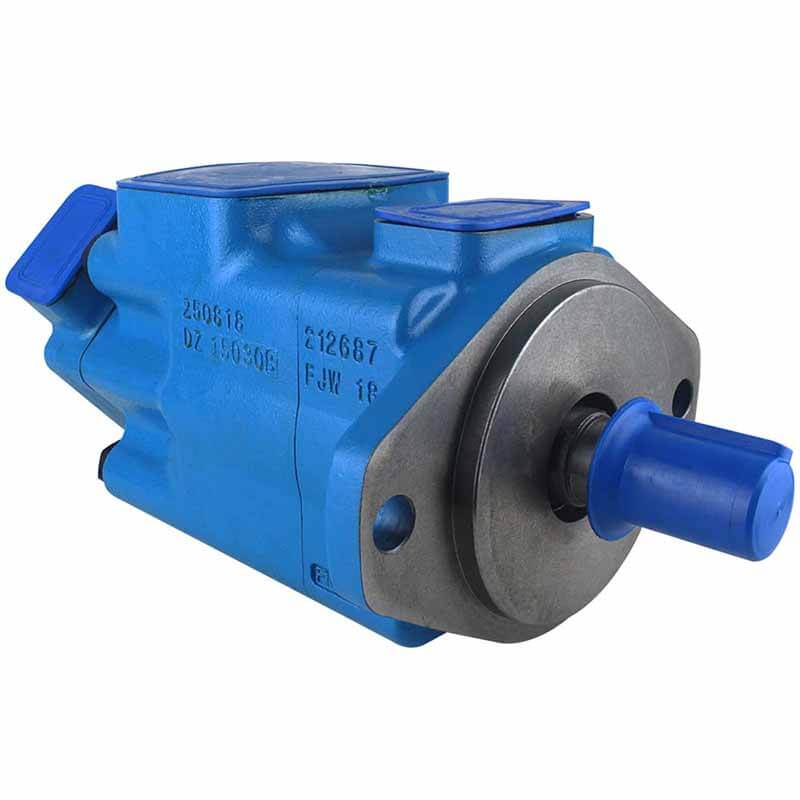

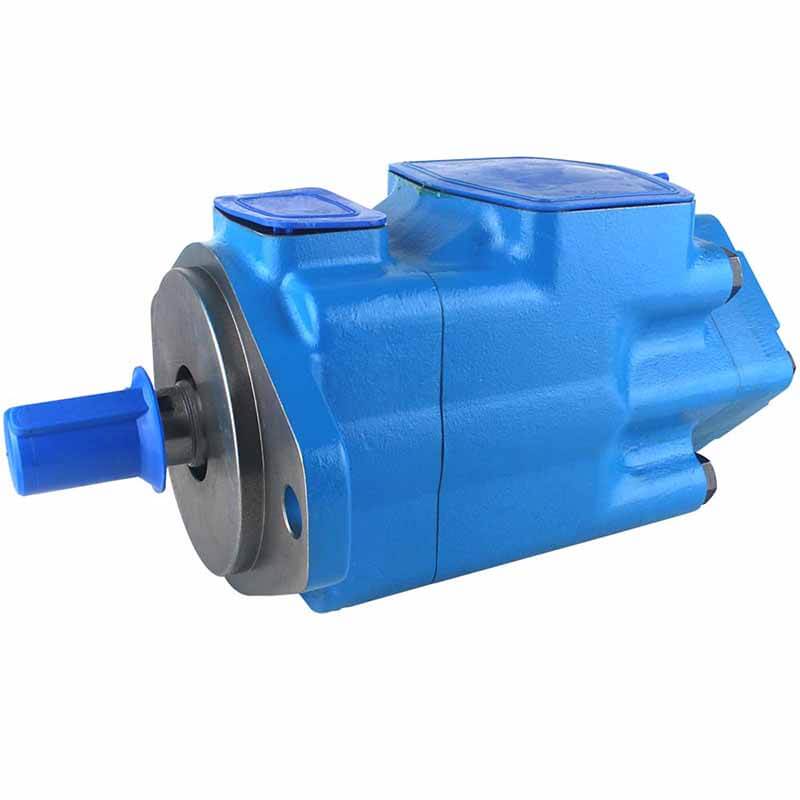

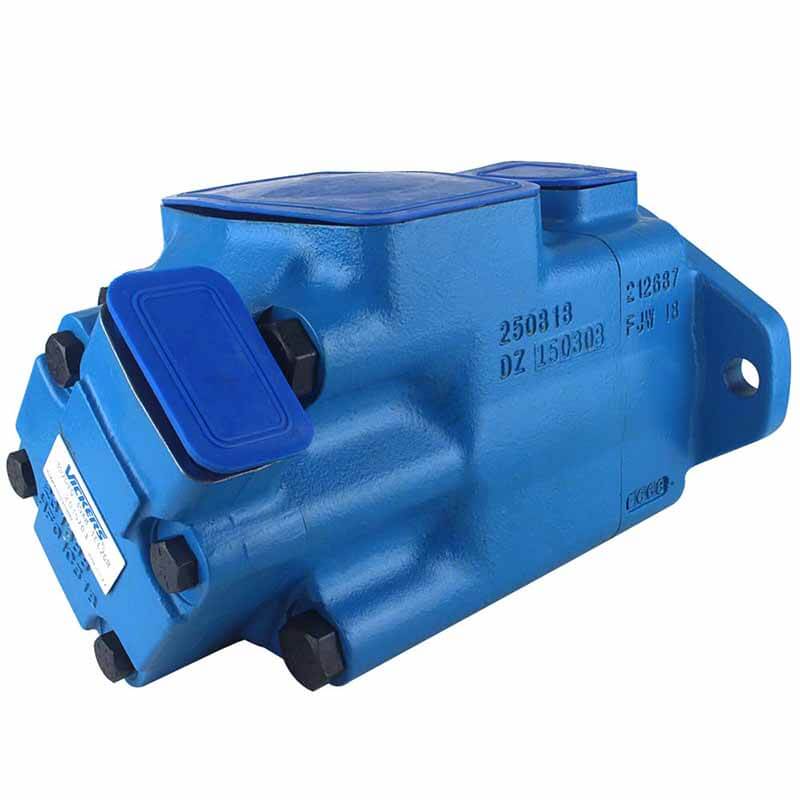

Eaton Vickers 2520VQ-12A5-1CC20R Hydraulic Double Vane Pump
Specification
| Shaft End Pump | Cover End Pump | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Series | Delivery USgpm @ 1200 r/min 7 bar (100 psi) | Displ. cm³/r(in³/r) |
Max. r/min |
Max. bar (psi) |
Typical del. L/min (USgpm) @ max. speed & pressure | Typical input kW (hp) @ max. speed & pressure | Delivery USgpm @ 1200 r/min 7 bar (100 psi) | Displ. cm³/r(in³/r) |
Max. r/min |
Max. bar (psi) |
Typical del. L/min (USgpm) @ max. speed & pressure | Typical input kW (hp) @ max. speed & pressure | Wt. kg (lb.) |
| 2520VQ | 12 | 40,2 (2.45) | 2700 | 210 (3000) | 88,5 (23) | 41,0 (55) | 5 | 18,0 (1.10) | 2700 | 210 (3000) | 42,3 (11) | 17,9 (24) | 20,5 (45) |
| 14 | 45,4 (2.77) | 2700 | 210 (3000) | 103,8 (27) | 46,6 (62.5) | 8 | 27,4 (1.67) | 2700 | 210 (3000) | 65,4 (17) | 26,1 (35) | ||
| 17 | 55,2 (3.37) | 2500 | 210 (3000) | 119,2 (31) | 51,8 (69.5) | 11 | 36,4 (2.22) | 2700 | 210 (3000) | 88,5 (23) | 35,4 (47.5) | ||
| 21 | 67,7 (4.12) | 2500 | 210 (3000) | 146,2 (38) | 61,9 (83) | 12 | 39,5 (2.41) | 2700 | 160 (2300) | 98,1 (25.5) | 28,4 (38) | ||
| 14 | 45,9 (2.80) | 2700 | 140 (2000) | 115,4 (30) | 29,1 (39) | ||||||||
| 3520VQ | 25 | 81,6 (4.98) | 2500 | 210 (3000) | 173,1 (45) | 75,3 (101) | 5 | 18,0 (1.10) | 2500 | 210 (3000) | 38,5 (10) | 16,5 (22) | 34,0 (75) |
| 30 | 97,7 (5.96) | 2500 | 210 (3000) | 211,5 (55) | 87,7 (117.5) | 8 | 27,4 (1.67) | 2500 | 210 (3000) | 61,5 (16) | 24,0 (32.5) | ||
| 35 | 112,8 (6.88) | 2400 | 210 (3000) | 230,8 (60) | 98,5 (132) | 11 | 36,4 (2.22) | 2500 | 210 (3000) | 80,8 (21) | 33,0 (44) | ||
| 38 | 121,6 (7.42) | 2400 | 210 (3000) | 250,0 (65) | 104,4 (140) | 12 | 39,5 (2.41) | 2500 | 160 (2300) | 90,4 (23.5) | 26,1 (35) | ||
| 14 | 45,9 (2.80) | 2500 | 140 (2000) | 105,8 (27.5) | 26,8 (36) | ||||||||
| 3525VQ | 25 | 81,6 (4.98) | 2500 | 210 (3000) | 173,1 (45) | 75,3 (101) | 12 | 40,2 (2.45) | 2500 | 210 (3000) | 79,5 (21) | 38,0 (51) | 34,5 (76) |
| 30 | 97,7 (5.96) | 2500 | 210 (3000) | 211,5 (55) | 87,7 (117.5) | 14 | 45,4 (2.77) | 2500 | 210 (3000) | 91,0 (24) | 43,0 (58) | ||
| 35 | 112,8 (6.88) | 2400 | 210 (3000) | 230,8 (60) | 98,5 (132) | 17 | 55,2 (3.37) | 2500 | 210 (3000) | 119,2 (31) | 51,5 (69) | ||
| 38 | 121,6 (7.42) | 2400 | 210 (3000) | 250,0 (65) | 104,4 (140) | 21 | 67,5 (4.12) | 2500 | 210 (3000) | 146,2 (38) | 61,9 (83) | ||
| 4520VQ | 42 | 138,7 (8.46) | 2200 | 175 (2500) | 255,8 (66.5) | 91,4 (122.5) | 5 | 18,0 (1.10) | 2200 | 210 (3000) | 32,0 (8.5) | 14,5 (19.5) | 43,0 (94) |
| 50 | 162,3 (9.90) | 2200 | 175 (2500) | 303,8 (79) | 105,2 (141) | 8 | 27,4 (1.67) | 2200 | 210 (3000) | 51,0 (13.5) | 21,0 (28.5) | ||
| 60 | 193,4 (11.80) | 2200 | 175 (2500) | 369,2 (96) | 126,8 (170) | 11 | 36,4 (2.22) | 2200 | 210 (3000) | 68,0 (18) | 28,5 (38.5) | ||
| 12 | 39,5 (2.41) | 2200 | 160 (2300) | 77,5 (20.5) | 23,0 (31) | ||||||||
| 14 | 45,9 (2.80) | 2200 | 140 (2000) | 91,0 (24) | 24,0 (32) | ||||||||
| 4525VQ | 42 | 138,7 (8.46) | 2200 | 175 (2500) | 255,8 (66.5) | 91,4 (122.5) | 12 | 40,2 (2.45) | 2200 | 210 (3000) | 68,0 (18) | 33,0 (44) | 46,0 (101) |
| 50 | 162,3 (9.90) | 2200 | 175 (2500) | 303,8 (79) | 105,2 (141) | 14 | 45,4 (2.77) | 2200 | 210 (3000) | 79,5 (21) | 38,0 (51) | ||
| 60 | 193,4 (11.80) | 2200 | 175 (2500) | 369,2 (96) | 126,8 (170) | 17 | 55,2 (3.37) | 2200 | 210 (3000) | 100,0 (26.5) | 45,5 (61) | ||
| 21 | 67,5 (4.12) | 2200 | 210 (3000) | 125,0 (33) | 54,5 (73) | ||||||||
| 4535VQ | 42 | 138,7 (8.46) | 2200 | 175 (2500) | 255,8 (66.5) | 91,4 (122.5) | 25 | 81,6 (4.98) | 2200 | 210 (3000) | 145,5 (38.5) | 66,5 (89) | 53,6 (118) |
| 50 | 162,3 (9.90) | 2200 | 175 (2500) | 303,8 (79) | 105,2 (141) | 30 | 97,7 (5.96) | 2200 | 210 (3000) | 178,0 (47) | 77,5 (104) | ||
| 60 | 193,4 (11.80) | 2200 | 175 (2500) | 369,2 (96) | 126,8 (170) | 35 | 112,8 (6.88) | 2200 | 210 (3000) | 211,5 (55) | 89,5 (120) | ||
| 38 | 121,6 (7.42) | 2200 | 210 (3000) | 223,0 (59) | 97,0 (130) | ||||||||
