F11-058-MD-CN-K-000 F11-005-MB-CH-K-000 PARKER Hydraulic Motor

$750.00 In Stock Sold out
MODEL

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

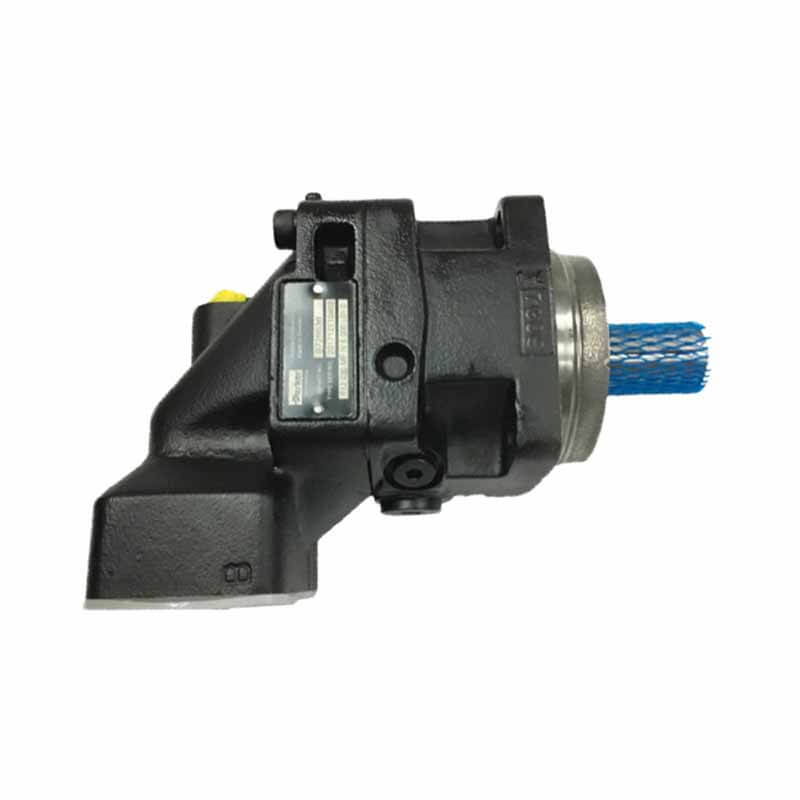

F11-058-MD-CN-K-000 F11-005-MB-CH-K-000 PARKER Hydraulic Pump Motor Hydraulic Piston Motor

specification

Frame size F11-5 -10 -14 -19 F12-30 -40 -60 -80 -110 F11-150 -250
Displacement [cm3/rev] 4.9 9.8 14.3 19 30 40 59.8 80.4 110.1 150 242
[cu in/rev] 0.3 0.6 0.87 1.16 1.83 2.44 3.65 4.91 6.72 9.15 14.8
Operating pressure max intermittent [bar] 420 420 420 420 480 480 480 480 480 420 420
[psi] 6000 6000 6000 6000 7000 7000 7000 7000 7000 6000 6000
max continuous [bar] 350 350 350 350 420 420 420 420 420 350 350
[psi] 5000 5000 5000 5000 6000 6000 6000 6000 6000 5000 5000
Motor operating speed max intermittent [rpm] 12000 11000 10000 9000 7100 6400 5600 5200 4700 3000 2700
max continuous [rpm] 10800 9900 9000 8100 5600 5000 4300 4000 3600 2600 2400
min continuous [rpm] 50 50 50 50 50 50 50 50 50 50 50
Max pump selfpriming speed L or R function; max [rpm] 4600 4200 3900 3500 3150 2870 2500 2300 2290 1700 1500
Motor input flow max intermittent [l/min] 58 108 143 171 213 256 335 418 517 450 650
[gpm] 15.3 28.5 37.8 45.2 56.3 67.6 88.5 110.4 136.6 119 172.8
max continuous [l/min] 52 97 128 153 168 200 257 322 396 390 580
[gpm] 13.7 25.6 33.8 40.4 44.4 52.8 67.9 85.1 104.6 103 153.6
Main circuit temp. max [°C] 80 80 80 80 80 80 80 80 80 80 80
[°F] 175 175 175 175 175 175 175 175 175 175 175
min [°C] -35 -35 -30 -35 -35 -35 -35 -35 -35 -35 -35
[°F] -31 -31 -22 -31 -31 -31 -31 -31 -31 -31 -31
Mass moment of inertia (x10-3) [kg m2] 0.16 0.39 0.42 1.1 1.7 2.9 5 8.4 11.2 40 46
(x10-2) [lbft2] 0.38 0.92 1 2.61 4.03 6.88 11.86 19.93 26.58 94.92 109.16
Weight [kg] 5 7.5 8.3 11 12 16.5 21 26 36 70 77
[lb] 11 16.5 18.8 24 26 36 46 57 79 154 170



FAQ

Q: Are you a trading company or manufacturer?

Re: We are the manufacturer.

Q: How long is the Warranty?
Re: One-year warranty.
Q: What are your payment terms?
Re: 100%  in advance, long-term dealer 30% in advance, 70% before shipping.
Q: How about the delivery time?
Re: Normal Models within 2 days, unusual models, and bulk orders within 5-10 days.
