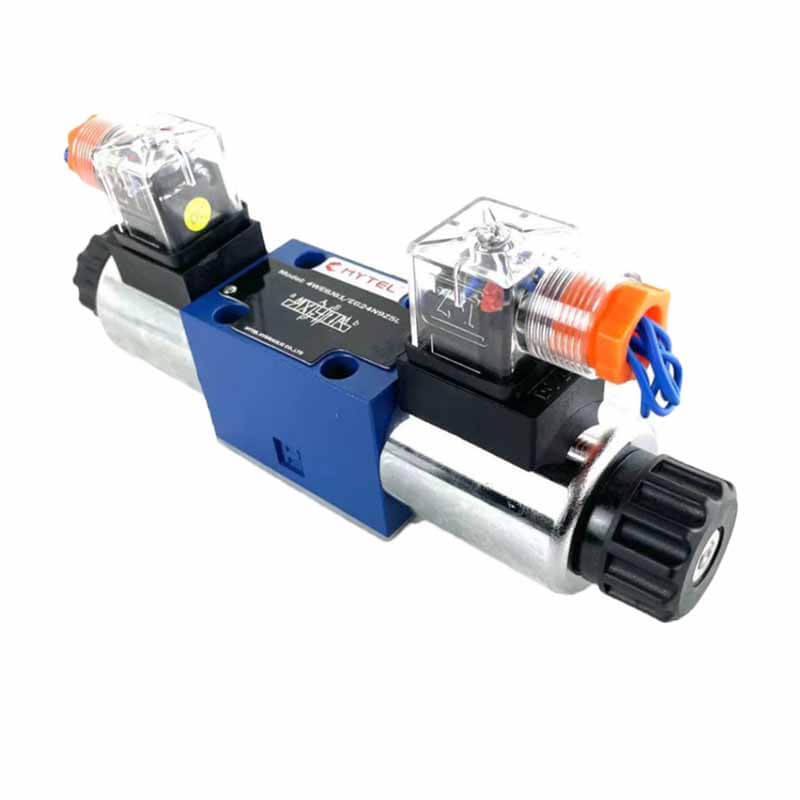

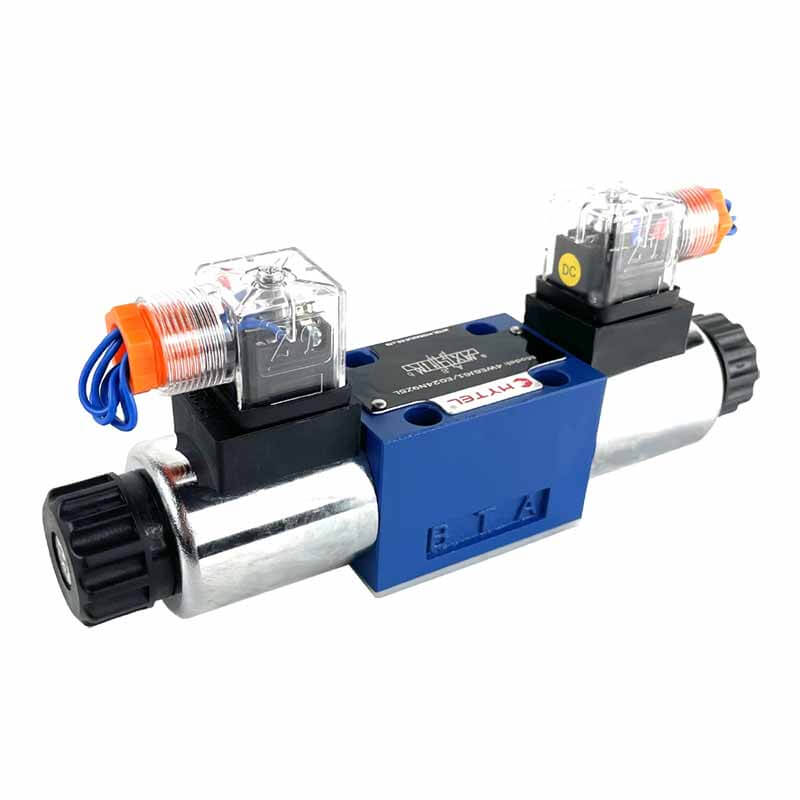

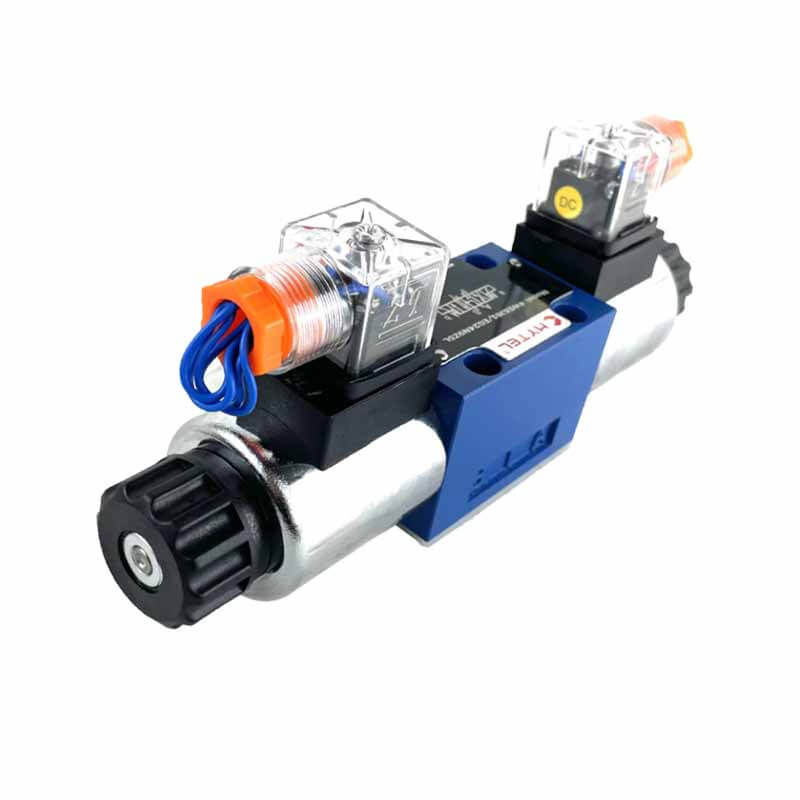

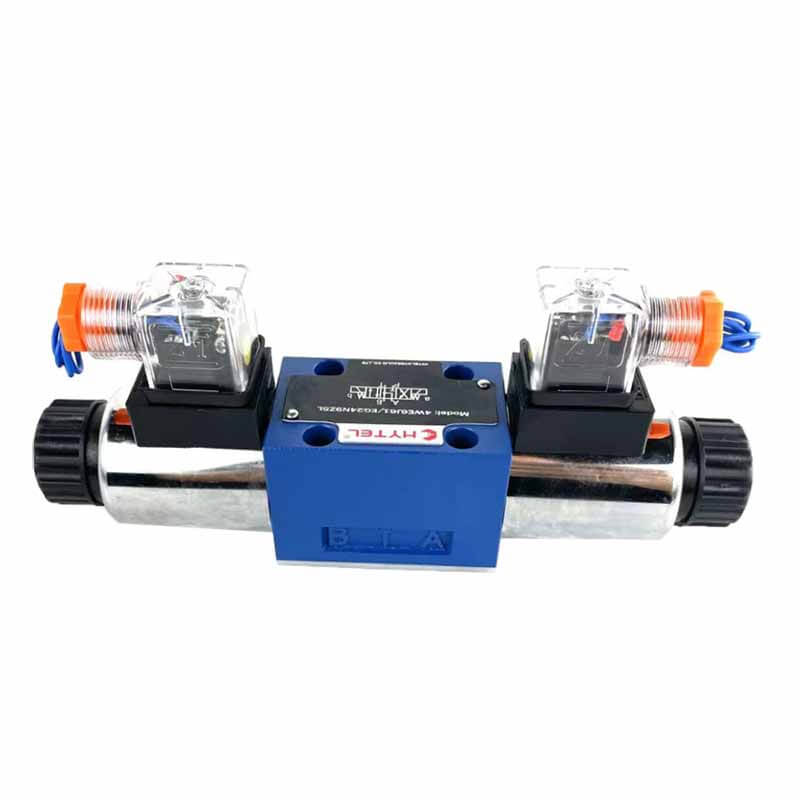

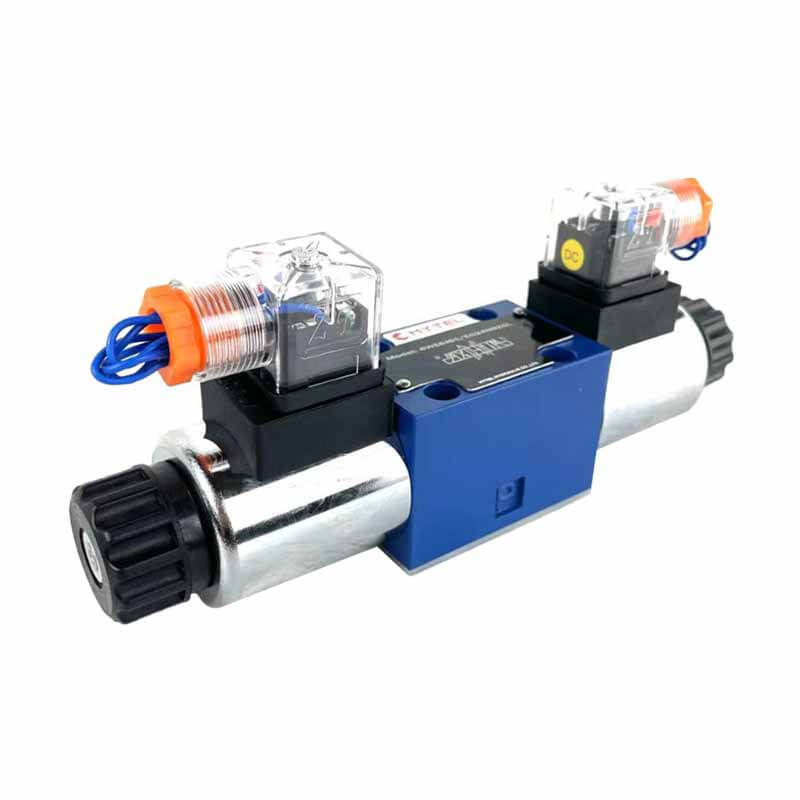

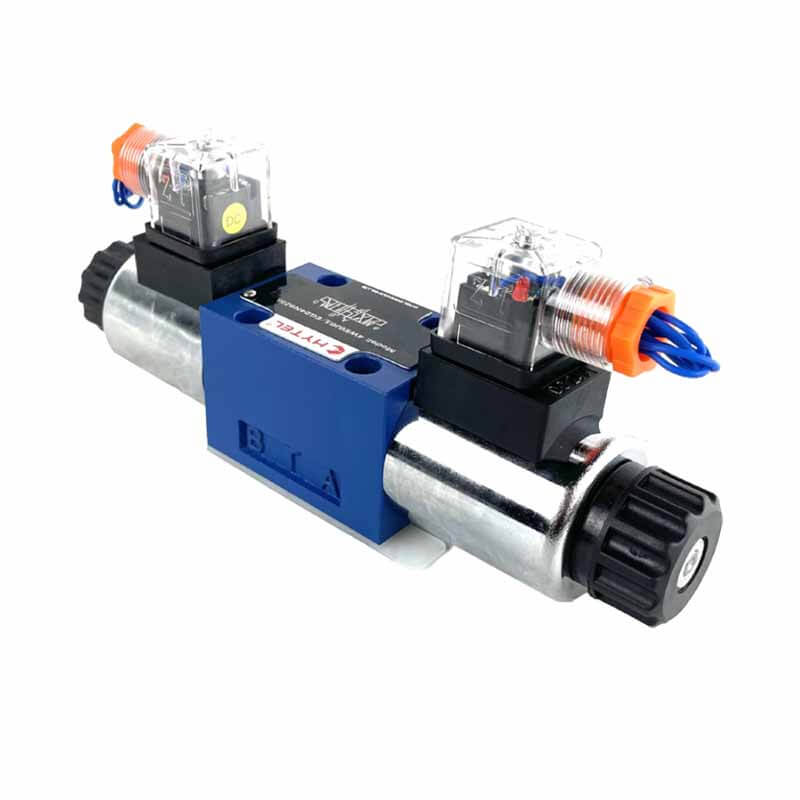

Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve
ZUOSEN HYDRAULIC

Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valve

$200.00 In Stock Sold out
MODEL

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

Rexroth 4WE10J5X/HG24N9K4/M Hydraulic Valves

Specifications

Weight Individual connection Central connection
– Valve with one solenoid kg [lbs] 4.4 [9.7] (DC); 4.3 [9.5] (DC);
3.6 [7.9] (AC) 3.5 [7.7] (AC)
– Valve with two solenoids kg [lbs] 6.0 [13.2] (DC); 5.9 [13.0] (DC);
4.4 [9.7] (AC) 4.3 [9.5] (AC)
Installation position Optional
Ambient temperature range °C [°F] –30 to +50 [–22 to +122] (NBR seals)
–20 to +50 [–4 to +122] (FKM seals)
Maximum operating pressure – Ports A, B, P bar [psi] 315 [4569]
– Port T bar [psi] 210 [3050] (DC); 160 [2320] (AC)
With symbols A and B, port T must be used as leak age oil port, if the operating pressure is higher than the tank pressure.
Maximum flow l/min [US gpm] 120 [31.7]
Flow cross-section
(spool position 0)
– Spool symbol V mm2 [inch2] 11 [0.017] (A/B to T); 10,3 [0.016] (P to A/B)
– Spool symbol W mm2 [inch2] 2.5 [0.004] (A/B to T)
– Spool symbol Q mm2 [inch2] 5.5 [0.009] (A/B to T)
Hydraulic fluid Mineral oil (HL, HLP) to DIN 51524; fast bio-degradable hydraulic fluids to VDMA 24568 (see also RE 90221); HETG (rape seed oil); HEPG (polyglycols); HEES (synthetic esters); other hydraulic fluids on request
Hydraulic fluid temperature range °C [°F] –30 to +80 [–22 to +176] (NBR seals)
–20 to +80 [–4 to +176] (FKM seals)
Viscosity range mm2/s [SUS] 2.8 to 500 [35 to 2320]
Permissible max. degree of contamination of the hydraulic fluid - cleanliness class to ISO 4406 (c) Class 20/18/15






FAQ

Q: Are you a trading company or manufacturer?

Re: We are the manufacturer.

Q: How long is the Warranty?
Re: One-year warranty.
Q: What are your payment terms?
Re: 100%  in advance, long-term dealer 30% in advance, 70% before shipping.
Q: How about the delivery time?
Re: Normal Models within 2 days, unusual models, and bulk order within 5-10 days.

Company Information

Zuosen Hydraulic is one of the world's leading manufacturers and suppliers of professional hydraulic piston pumpshydraulic vane pumpsgear pumpshydraulic valves, and accessories. The Factories are located in the Chinese leading manufacturing center- Foshan and Dongguan city.ZUOSEN owned advanced and precision machines and equipment, like Emag gear hobbing machine, Mitsubishi gear hobbing machine, Liebherr gear shaping machine, Horizontal machining center DMG MORI, CNC grinding machine, NC honing machine, CNC lathe, etc. Zuosen also owned the precision measuring equipment, like three coordinates measuring instrument, Gear measuring center, Rockwell hardness tester, the noise test room, Pressure &Flow & Temperature test platform, Surface Roughness & Dynamic Balance Tester leakage detecting tools, etc. Now Zuosen has a hundred long-term distributors and partners worldwide.

Since our foundation, we have been committed to creating maximum long-term value for customers worldwide by providing quality-assured, easy-to-use, cost-effective, and innovative products. To deliver this value to our customers, we make every effort to understand our end-users needs and translate those needs into superior products by maximizing our research and development and manufacturing capabilities. Our team is made up of the most distinguished experts and engineers with years of experience in this industry. We have been investing a minimum of 30% of our annual revenue into new product development. All our products are manufactured with the strictest standards to meet international quality and environmental standards.
