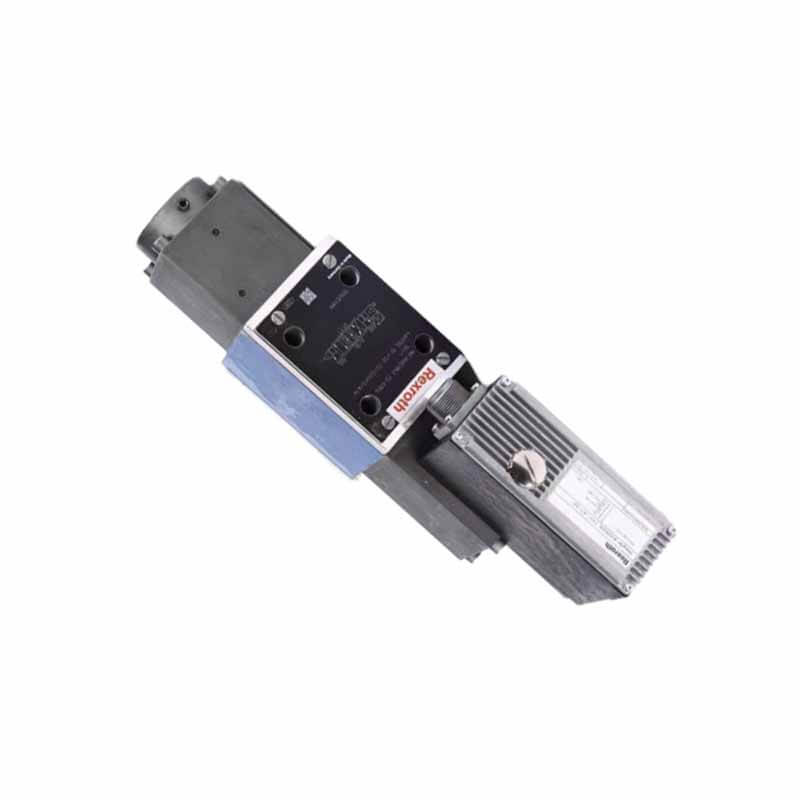

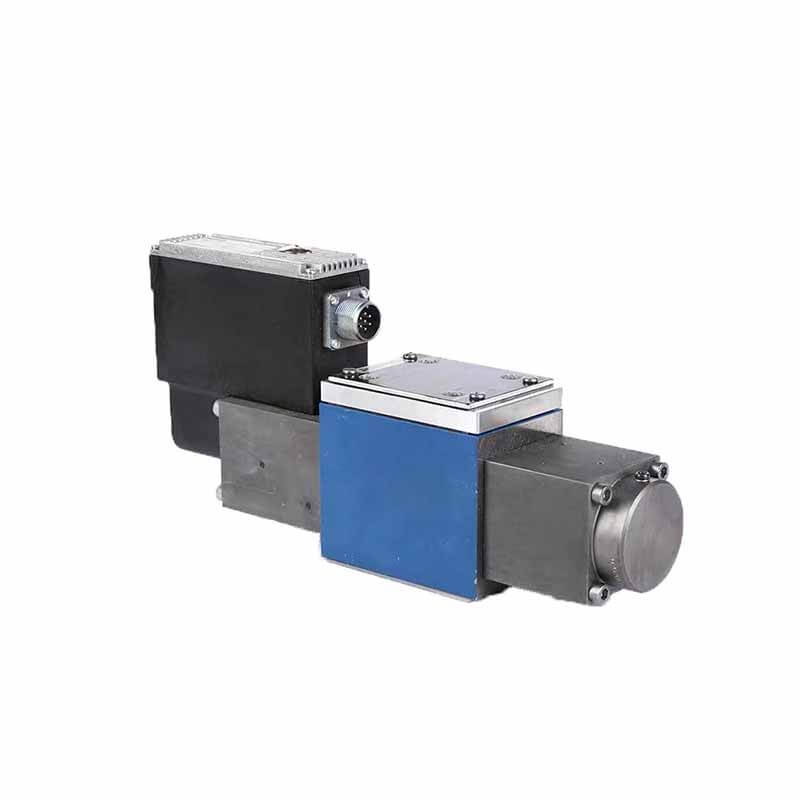

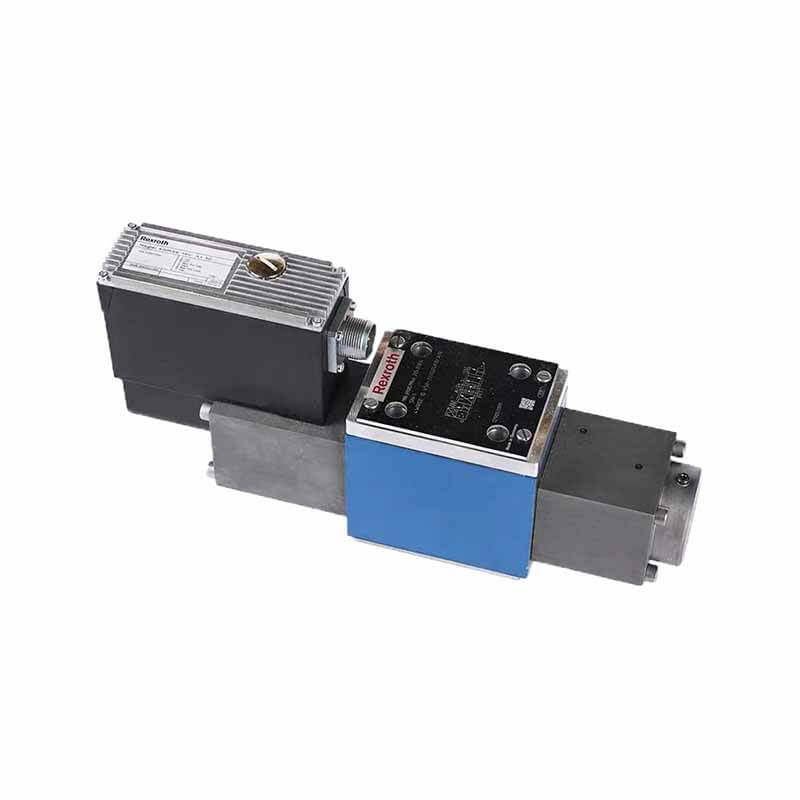

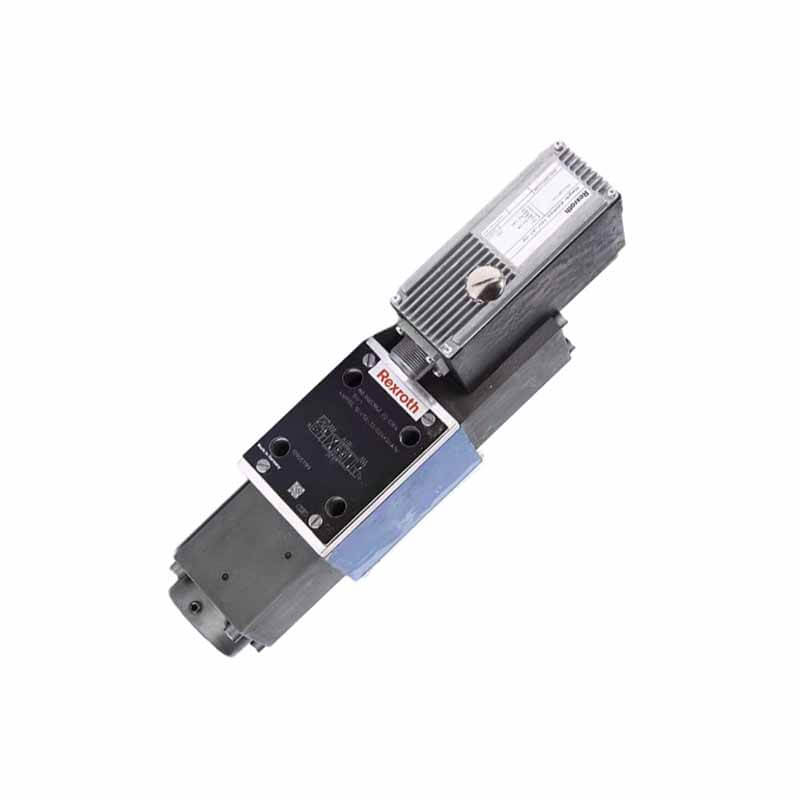

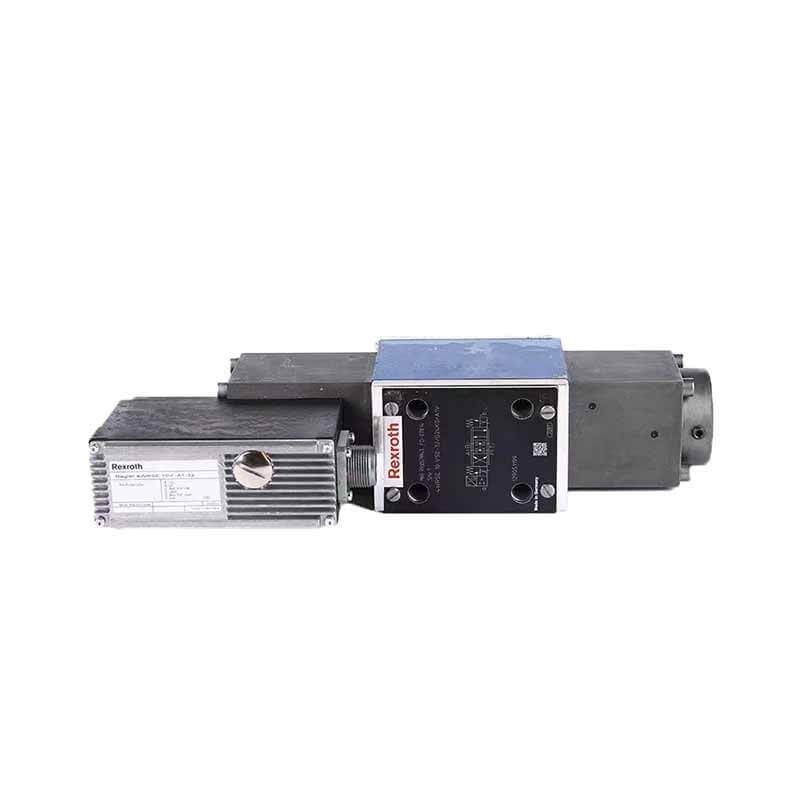

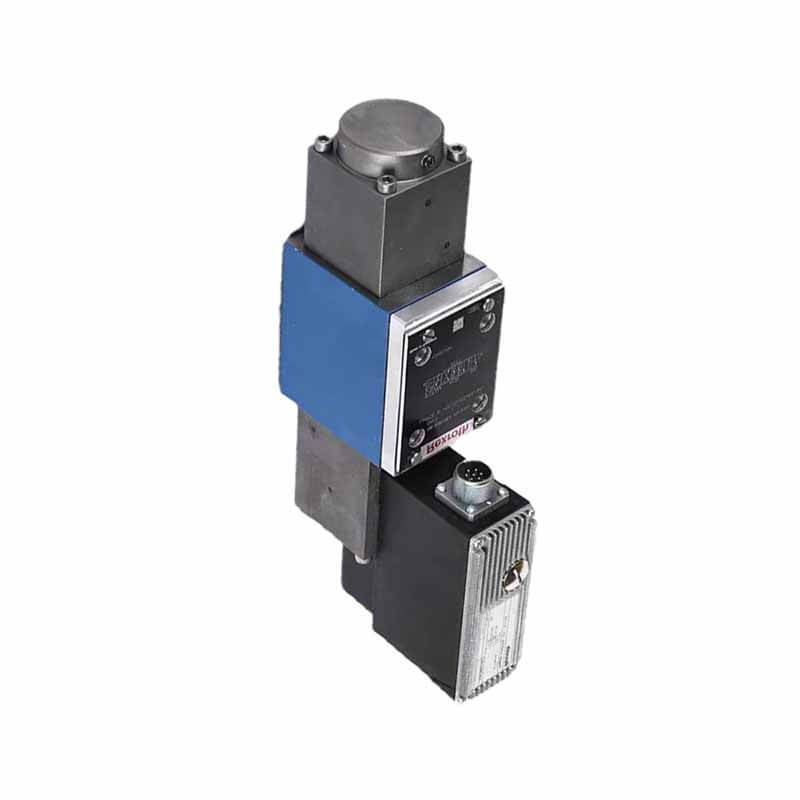

Rexroth 4WRSE10Q2-50-3X/G24K0/A1V Hydraulic Directional Control Valves
Specifications
| General | ||||||
|---|---|---|---|---|---|---|
| Sizes | Size 6 | Size 7 | ||||
| Weight | kg | 3.0 | 7.3 | |||
| Installation orientation | Optional, preferably horizontal | |||||
| Ambient temperature range | °C | –20 … +50 | ||||
| Storage temperature range | °C | –20 … +80 | ||||
| Hydraulic (measured with HLP46, oil = 40 °C ± 5 °C and p = 100 bar) | ||||||
| Operating pressure | Ports P, A, B bar | up to 315 | up to 315 | |||
| Port T | bar | up to 315 | up to 315 | |||
|
Nominal flow qV nom ±10 % at p = 10 bar (p = valve pressure differential) |
l/min | 4 | 25 | |||
| 10 | 50 | |||||
| 20 | 75 | |||||
| 35 | – | |||||
| Max. permissible flow | l/min | 80 | 180 | |||
| Hydraulic fluid | Mineral oil (HL, HLP) to DIN 51524 and phosphate ester (HFD-R), further hydraulic fluids on enquiry | |||||
| Hydraulic fluid temperature range | °C | –20 … +80 | ||||
| Viscosity range | mm2/s | 20 … 380, preferably 30 … 46 | ||||
| Max. permissible degree of contamination of the hydraulic fluid - cleanliness class to ISO 4406 (c) |
Class 18/16/13 1) |
|||||
| Hysteresis % | ≤ 0.05 | |||||
| Range of inversion % | ≤ 0.03 | |||||
| Response sensitivity % | ≤ 0.03 | |||||
| Zero point balancing % | ≤ 1 | |||||
|
Zero point drift with change in: Hydraulic fluid temperature |
%/10 K |
Size 6 | Size 10 | |||
| ＜ 0.1 | ＜ 0.1 | |||||
| Operating pressure | %/100 bar | ＜ 0.5 | ＜ 0.3 | |||
| Electrical | ||||
|---|---|---|---|---|
| Operating voltage | Nominal value (limits) | VDC | 24 | (19.4 … 35) |
| Current consumption | Size 6 | A | max. 2 | Impulse load: 4 A |
| Size 10 | A | max. 2.8 | Impulse load: 4 A | |
| Interface “A1“ | Command value signal | V | ±10 | Ri ＞ 50 kΩ |
| Actual value signal | V | ±10 | Imax = 2 mA | |
| Interface “F1“ | Command value signal | mA | 4 … 20 | Re ＞ 100 Ω |
| Actual value signal | mA | 4 … 20 | max. load resistance 500 Ω | |
| Duty cycle % | 100 | |||
| Coil temperature 1) | °C | up to 150 | ||
| Type of protection of valve to EN 60529 | IP 65 with cable socket correctly mounted and locked | |||
