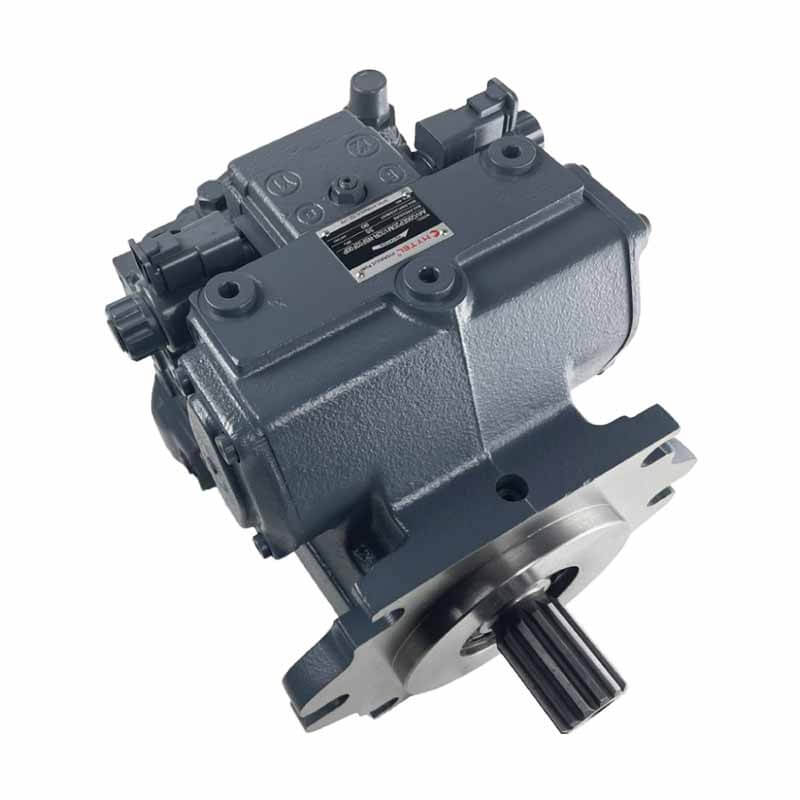

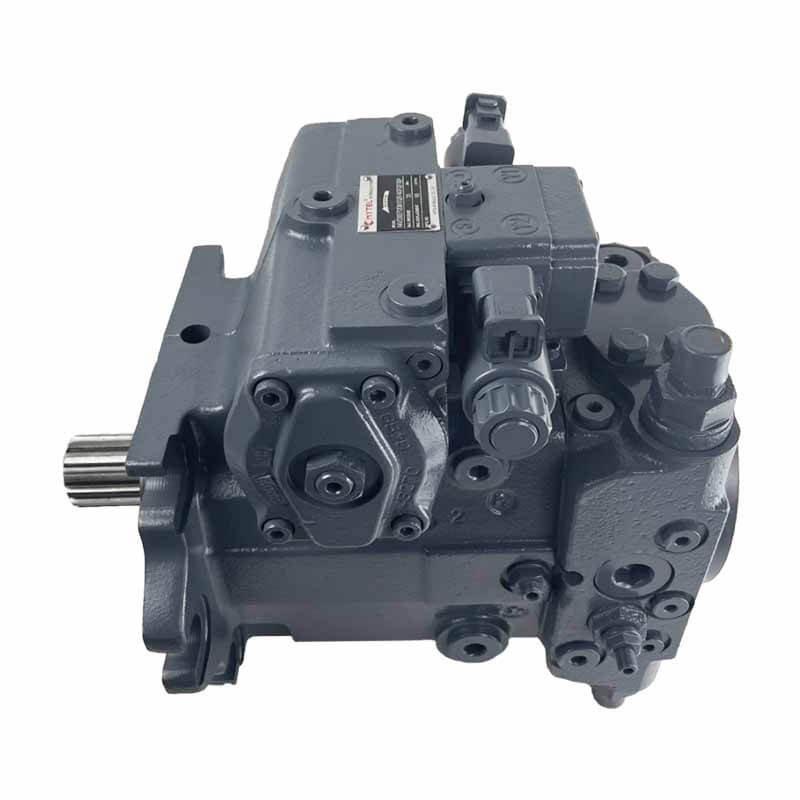

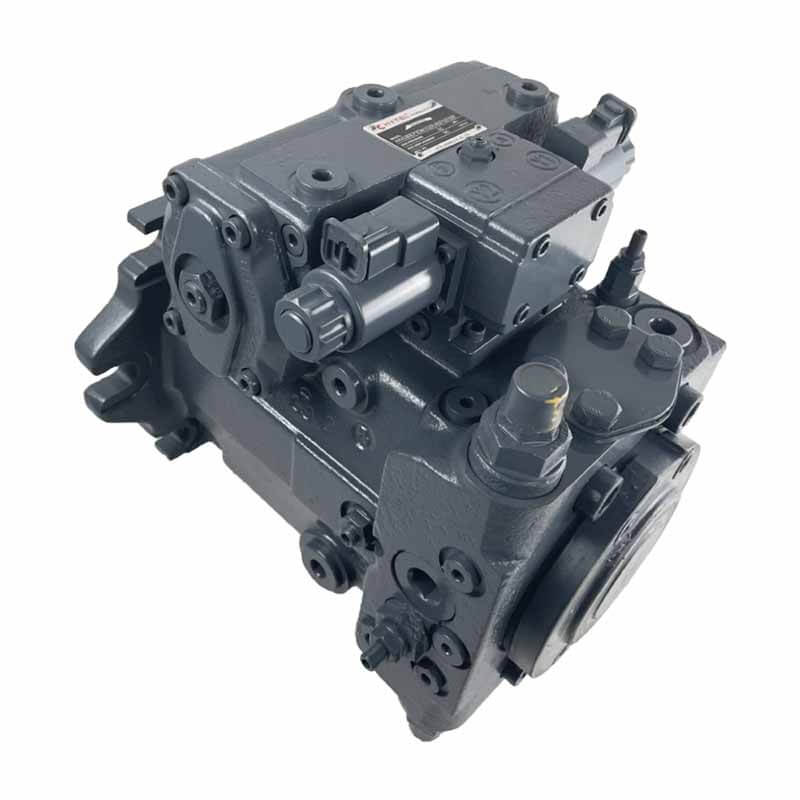

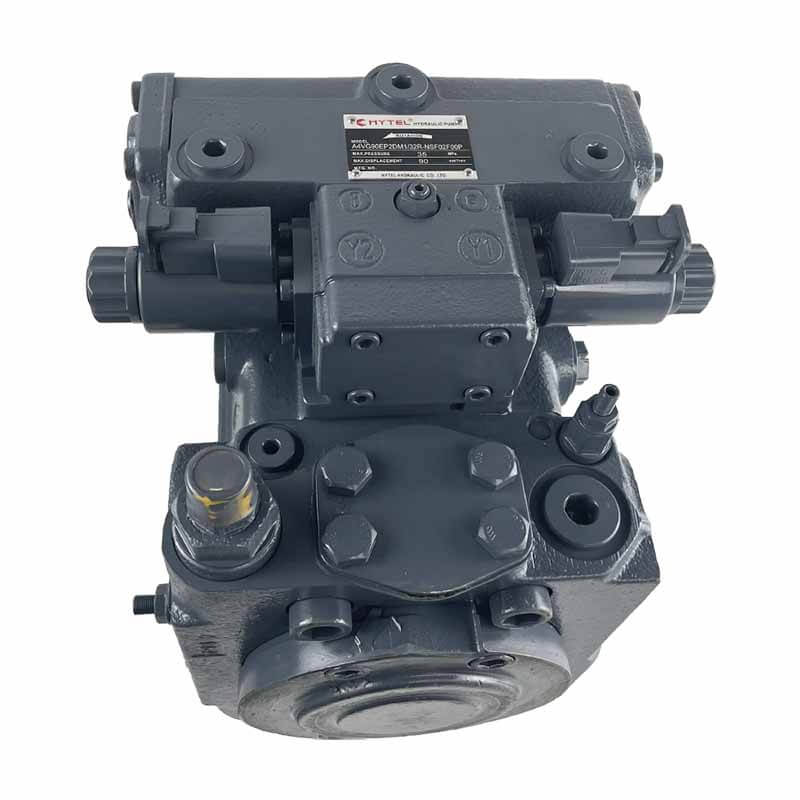

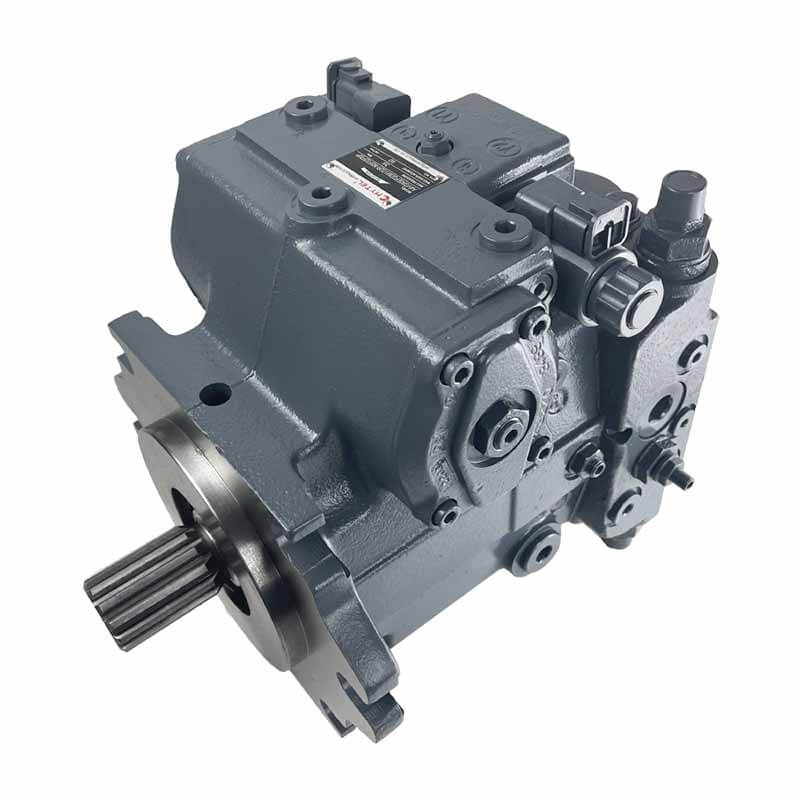

Rexroth A4VG90EP2DM1/32R-NSF02F00P Hydraulic Axial Piston Variable Pump
specification
| Size | 28 | 40 | 56 | 71 | 90 | 125 | 180 | 250 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Displacement | variable pump | Vgmax | cm3 | 28 | 40 | 56 | 71 | 90 | 125 | 180 | 250 |
| boost pump (at p = 20 bar) | VgSp | cm3 | 6.1 | 8.6 | 11.6 | 19.6 | 19.6 | 28.3 | 39.8 | 52.5 | |
| Speed | maximum at Vgmax | nmaxcontinuous | rpm | 4250 | 4000 | 3600 | 3300 | 3050 | 2850 | 2500 | 2400 |
| limited maximum | nmax limited | rpm | 4500 | 4200 | 3900 | 3600 | 3300 | 3250 | 2900 | 2600 | |
| intermittent maximum | nmax interm. | rpm | 5000 | 5000 | 4500 | 4100 | 3800 | 3450 | 3000 | 2700 | |
| minimum | nmin | rpm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Flow | at nmax continuous and Vg max | qv max | l/min | 119 | 160 | 202 | 234 | 275 | 356 | 450 | 600 |
| Power | at nmax continuous and Vg max ∆p = 400 bar | Pmax | kW | 79 | 107 | 134 | 156 | 183 | 237 | 300 | 400 |
| Torque at Vg max |
∆p = 400 bar | Tmax | Nm | 178 | 255 | 356 | 451 | 572 | 795 | 1144 | 1590 |
| ∆p = 100 bar | T | Nm | 44.5 | 63.5 | 89 | 112.8 | 143 | 198.8 | 286 | 398 | |
| Moment of inertia (of the turning parts) | J | kgm2 | 0.0022 | 0.0038 | 0.0066 | 0.0097 | 0.0149 | 0.0232 | 0.0444 | 0.0983 | |
| Angular acceleration, max. | rad/s2 | 38000 | 30000 | 24000 | 21000 | 18000 | 14000 | 11000 | 6700 | ||
| Speed variation, max. | rpm | 103 | 81 | 72 | 69 | 64 | 55 | 50 | 34 | ||
| Rotary stiffness | shaft end S | Nm/rad | 31400 | 69000 | 80800 | 98800 | 158100 | 218300 | 244500 | 354500 | |
| shaft end T | Nm/rad | – | – | 95000 | 120900 | – | 252100 | 318400 | 534300 | ||
| shaft end A | Nm/rad | – | 79600 | 95800 | 142400 | 176800 | 256500 | – | – | ||
| shaft end Z | Nm/rad | 32800 | 67500 | 78800 | 122800 | 137000 | 223700 | 319600 | 624200 | ||
| shaft end U | Nm/rad | 50800 | – | – | 107600 | – | – | – | – | ||
| Filling capacity | V | L | 0.9 | 1.1 | 1.5 | 1.3 | 1.5 | 2.1 | 3.1 | 6.3 | |
| Weight approx.(without through drive) | m | kg | 29 | 31 | 38 | 50 | 60 | 80 | 101 | 156 | |
