ZUOSEN HYDRAULIC

Rexroth A7V28LV1RPF00 Hydraulic Pump

$800.00 In Stock Sold out
MODEL

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

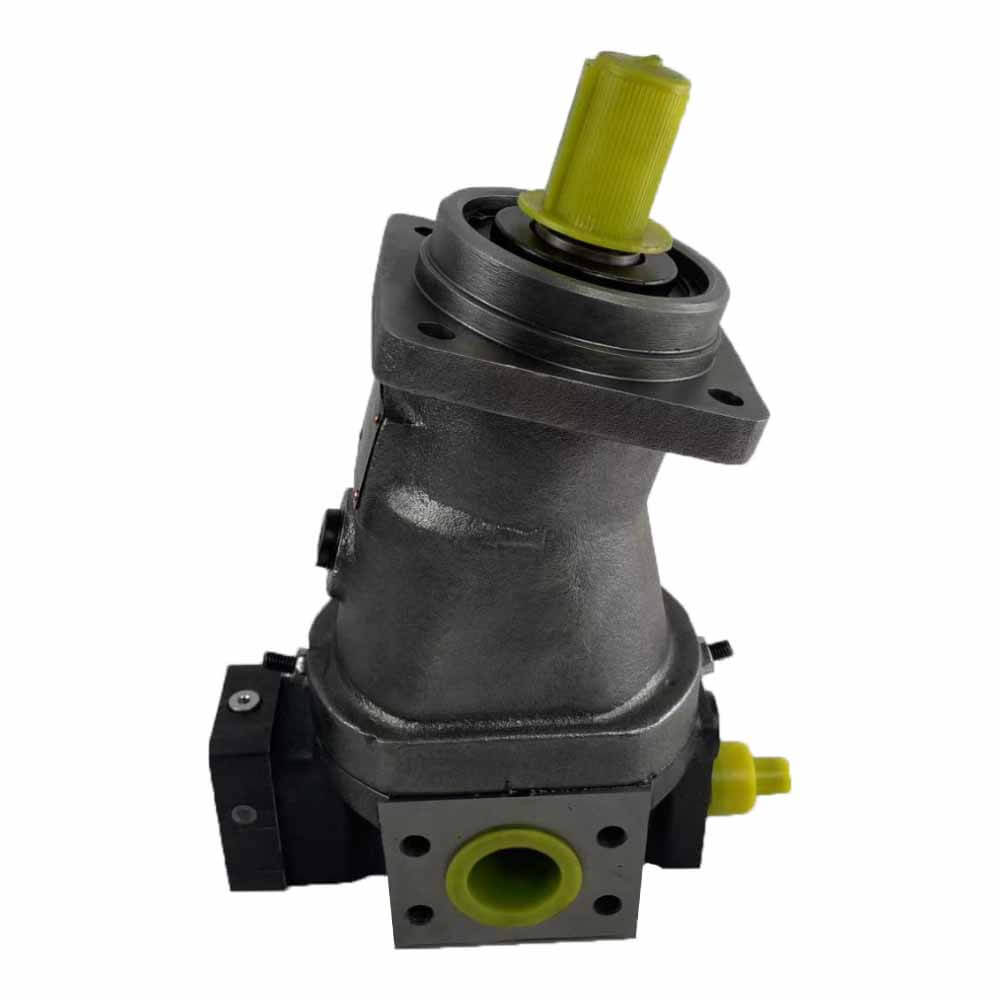

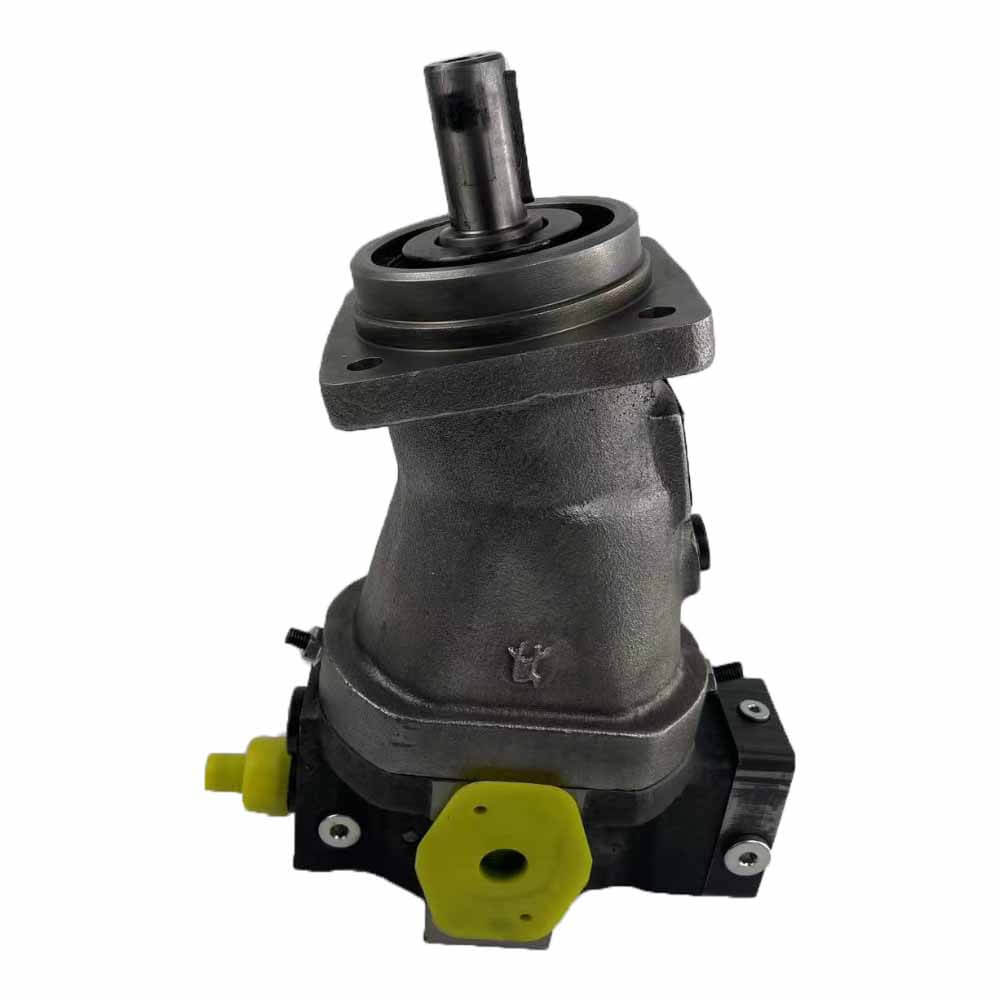

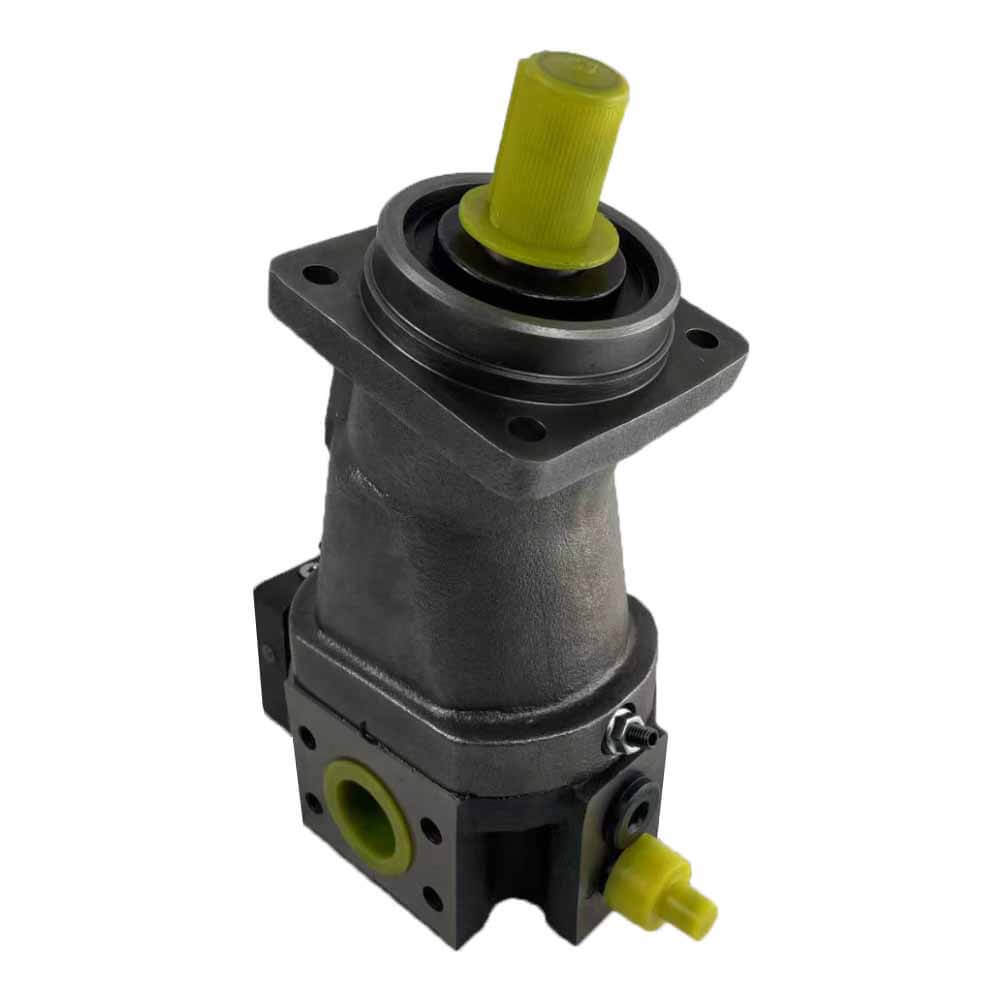

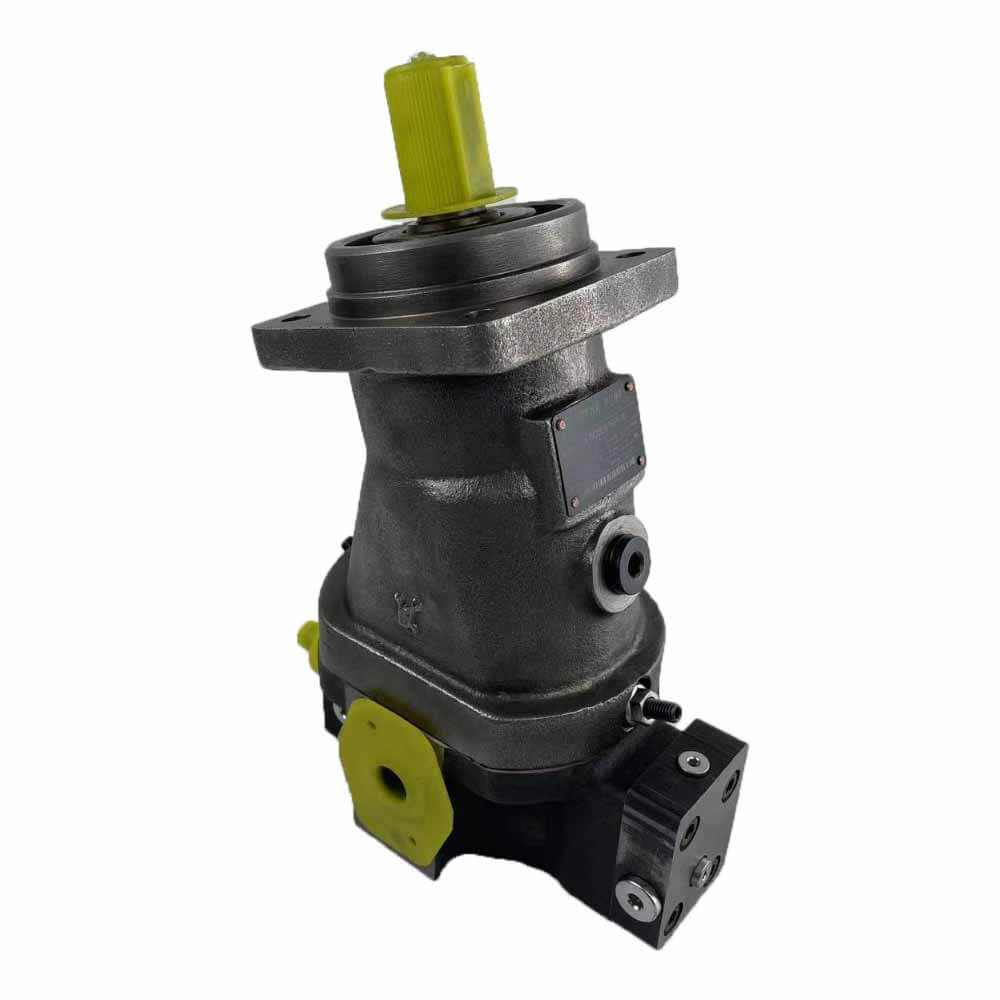

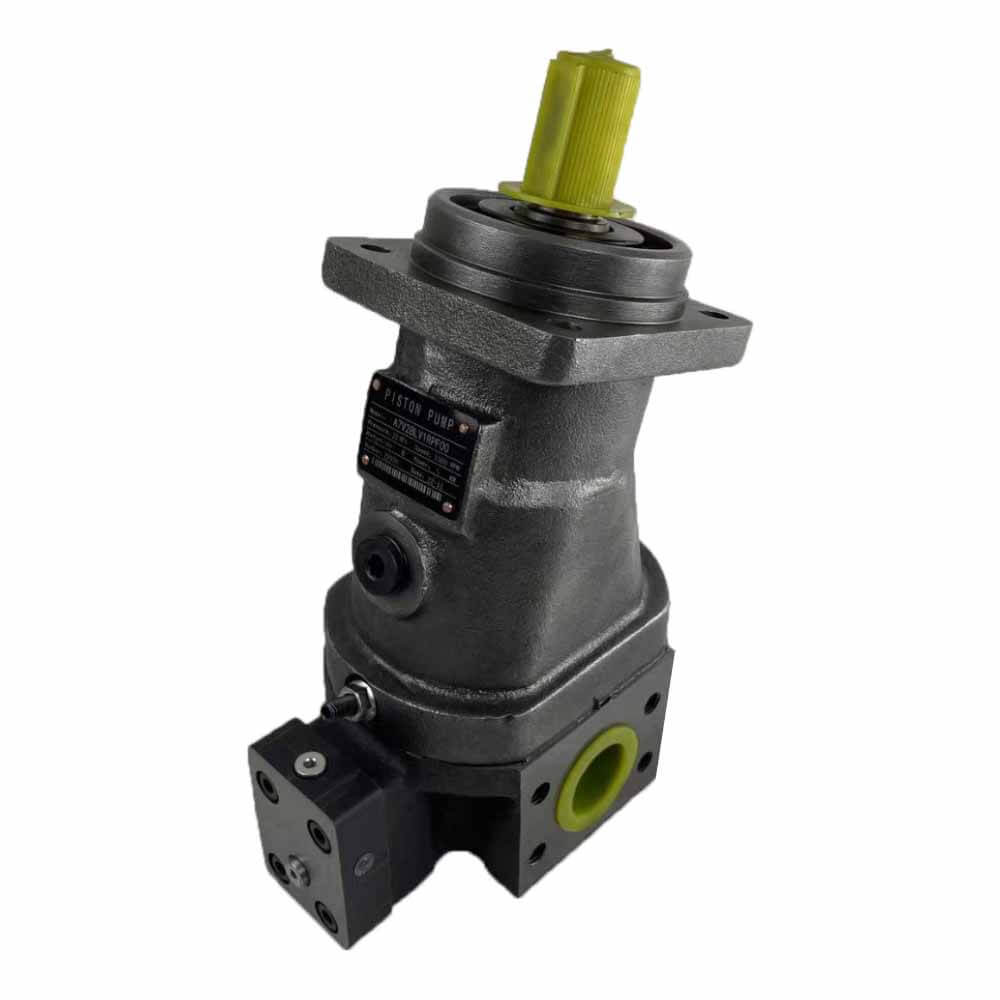

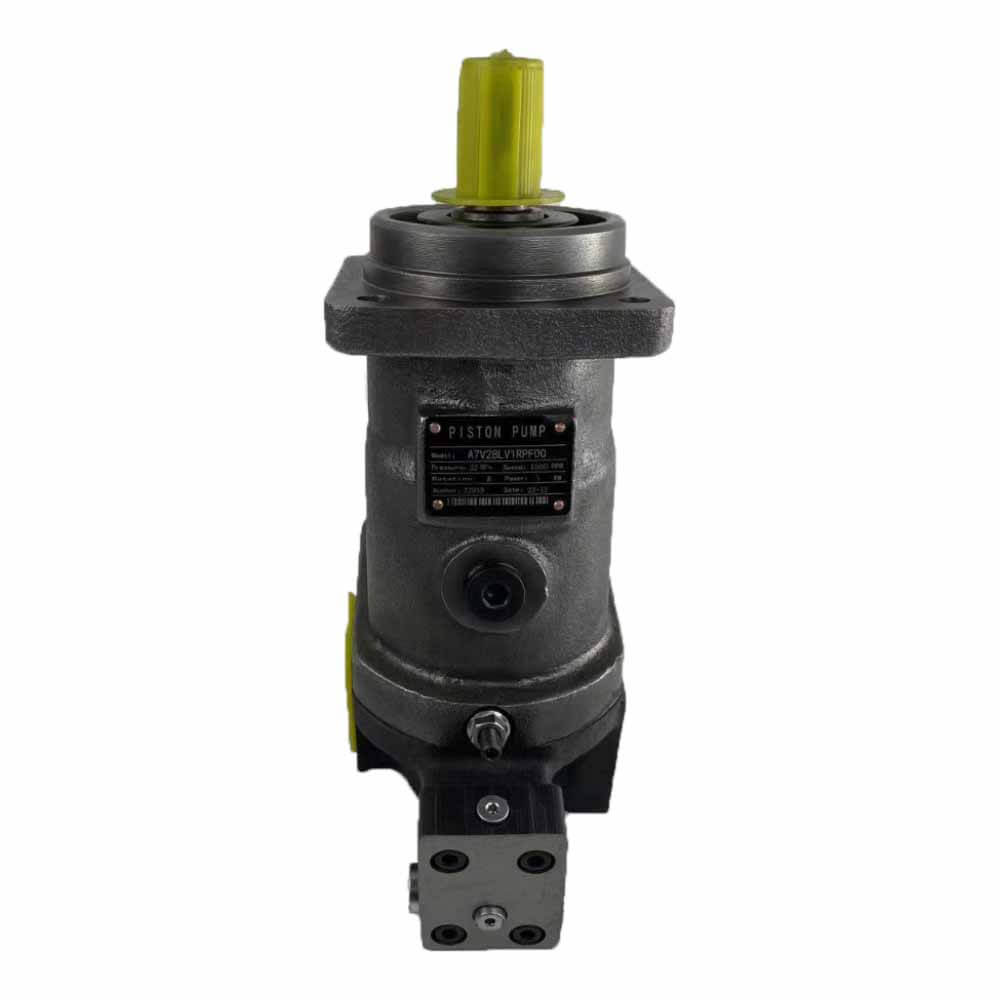

Rexroth A7V28LV1RPF00 Hydraulic Piston Pump

specification

Size 20 28 40 55 58 80 78 107 117 160 250 355 500
Control Device
LV Constant HP control · · · · · · · · · · · · ·
LVS Constant HP control with load sending ·
DR Constant pressure control · · · · · · · ·
DRS Constant pressure control with load sending ·
HD Hydraulic control · · · · · · · · ·
EP Electric control (Proportional) · · · · · · · · · · ·
MA Manual control · · · · · · · · · · ·
SC Brake control · · ·
NC Numerical control · ·
Displacement Vgmax ml/r 20.5 28.1 40.1 54.8 58.8 80 78 107 117 160 250 355 500
Max.speed Vgmin mi/r 0 8.1 0 15.8 0 23.1 0 30.8 0 46.2 0 0 0
0.09MPa nmax0.09 r/min 3800 2800 3200 2360 2850 2120 2540 1900 2240 1650 1400 1250 1120
0.1MPa nmax0.1 r/min 4100 3000 3400 2500 3000 2240 2700 2000 2360 1750 1500 1320 1200
Max. flow 0.15MPa nmax0.15 r/min 4750 3600 3750 3000 3350 2750 3000 2450 2650 2100 1850 1650 1500
nmax0.09 Qmax0.09 L /min 76 76 124 125 161 164 192 197 254 256 340 430 543
nmax0.1 Qmax0.1 L /min 82 82 132 133 170 174 204 208 267 271 364 455 582
Max.Power nmax0.15 Qmax0.15 L /min 94 98 146 160 190 213 227 254 300 326 449 568 728
Qmax0.09 Pmax0.09 KW 45 46 75 75 97 99 116 119 153 154 204 259 326
Qmax0.1 Pmax0.1 KW 49 49 80 80 102 105 123 125 161 163 218 273 350
(▲p=35MPa) Qmax0.15 Pmax0.15 KW 57 59 88 96 114 128 136 153 181 196 270 342 437
Flow Q
Power
NE=1450r/min L /min 28.8 39.5 56.4 77.1 82.3 112.5 109.7 150.5 164.6 225 - - -
P(▲p=35MPa) NE=1450r/min KW 17 24 34 46 50 68 66 91 99 135 - - -
Torque Vgmax Nm/10MPa 32.6 44.6 63.7 87 93.2 127.5 124 169.7 186 254 397.5 564.5 795
M(▲P=10MPa) Vgmin Nm/10MPa - 12.9 - 25.1 - 36.8 - 49 - 73.5 - - -
(▲p=35MPa) Vgmax Nm 114 156 223 305 326 446 431 594 651 889 1391 1975 2782
Max.torque Mmax Vgmin Nm - 45 - 88 - 129 - 171 - 257 - - -
Moment J kgm2 0017 0.00170 00520 00520 01090 0109 0.0167 0.0167 0.0322 0.0322 0.0880 16000 270
Weight kg 19 19 28 28 44 44 53 53 76 76 105 165 245



FAQ

Q: Are you a trading company or manufacturer?

Re: We are the manufacturer.

Q: How long is the Warranty?
Re: One-year warranty.
Q: What are your payment terms?
Re: 100%  in advance, long-term dealer 30% in advance, 70% before shipping.
Q: How about the delivery time?
Re: Normal Models within 2 days, unusual models, and bulk order within 5-10 days.
