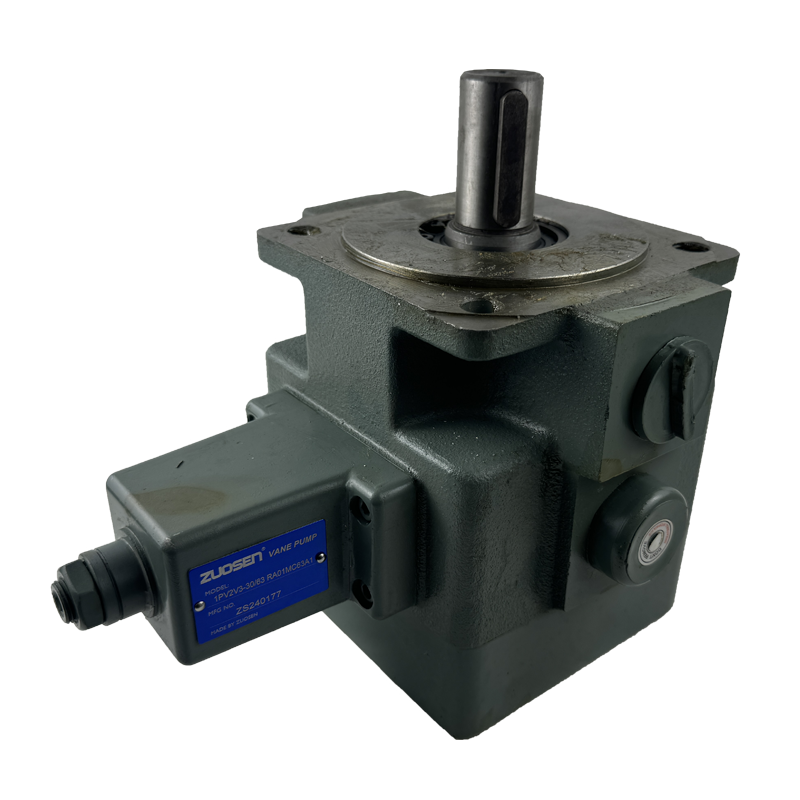

1PV2V3-30-63 ZUOSEN Hydraulic Pump Hydraulic Rotating Variable Vane Pump
Specification
| Technical data | Symbol | Units | Nominal sizes | |||
| V3/12 | V3/25 | V3/40 | V3/63 | |||
| Nominal displacement | V | cm/rev | 85 | 19 | 32 | 47 |
| Nominal output flow at n=1450 rpm,p=1 MPa | Qn | dm/min | 13 | 275 | 47 | 67 |
| Speed range | n | min | 950 upto 1800 | |||
| Spring type | C25,C40,C63,C100 | |||||
| Pressure range | P | MPa | 1,2.2,52,0.4,03,0..6,35,0...10 | |||
|
Operating pressure: input outlet |
P | MPa |
0,02(under pressure)up to 0.5(over pressure) max.10,0(by the spring -continuous op. pressure |
|||
| Leakage port | P | MPa | max.0,2 | |||
| Max.torque(drive shaft) | M | Nm | 54 | 618 | 235 | 353 |
| Hydraulic medium |
mineral oils HLP DIN 51.524 part 2 |
|||||
| Temperature range | t | C | -10 upto+70 | |||
| Fluid filtration | μm |
25(B ≥100) 10 μm is recommended in order to achieve long working ife with heavy loading,high duty and low viscosity |
||||
| oil viscosity rang | W | m²/s |
16-10⁴up to 160-10⁴at operation temperature and zero stroke pressure<6,3 MPa 25-10⁴up to 160-10*at operation temperature and zero stroke pressure>6,3 MPa max.80010*when starting up and oil delivering max.200-10⁴when starting up at zero stroke |
|||
| Efficiency | See Efficiency curves | |||||
| Weight | kg | m | 6.25 | 11.1 | 26.5 | 29.5 |
