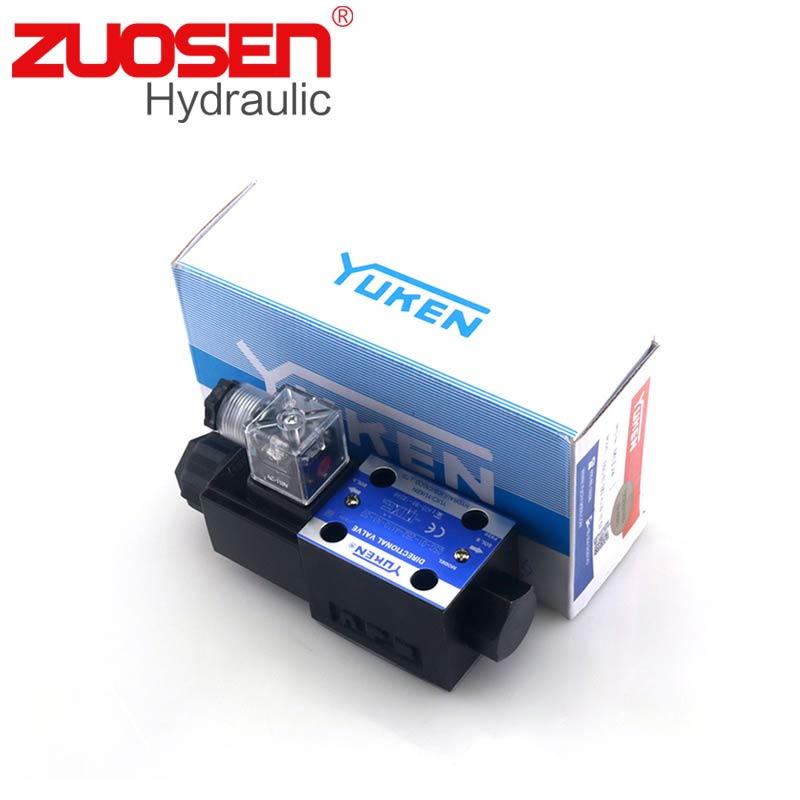

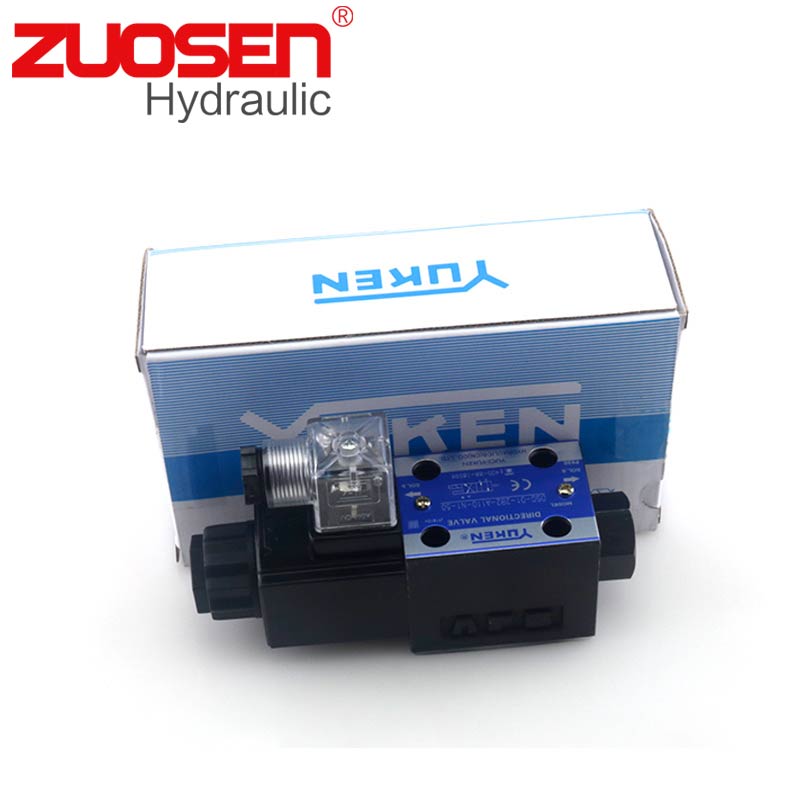

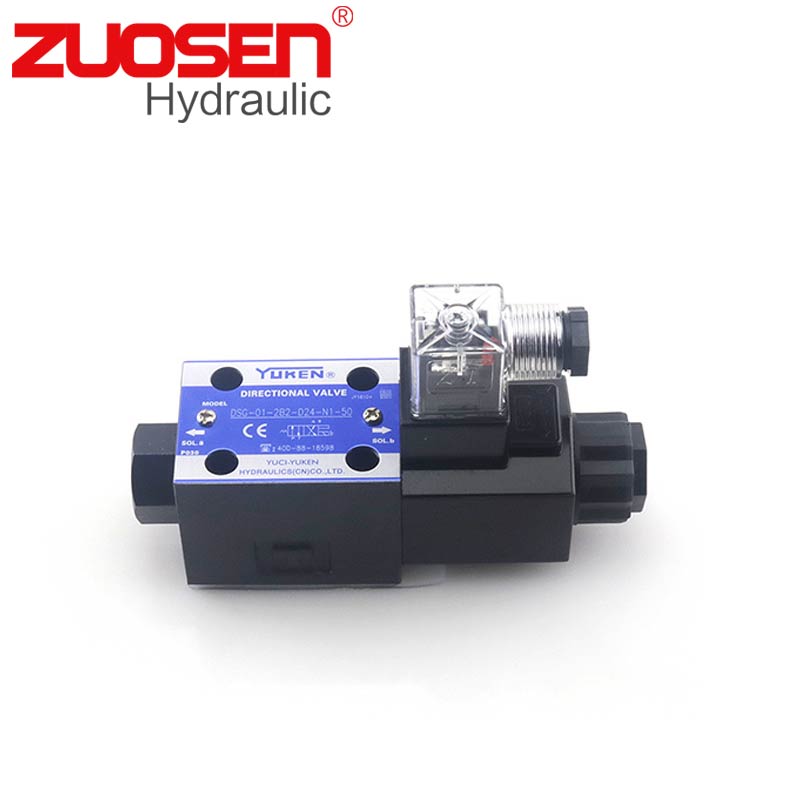

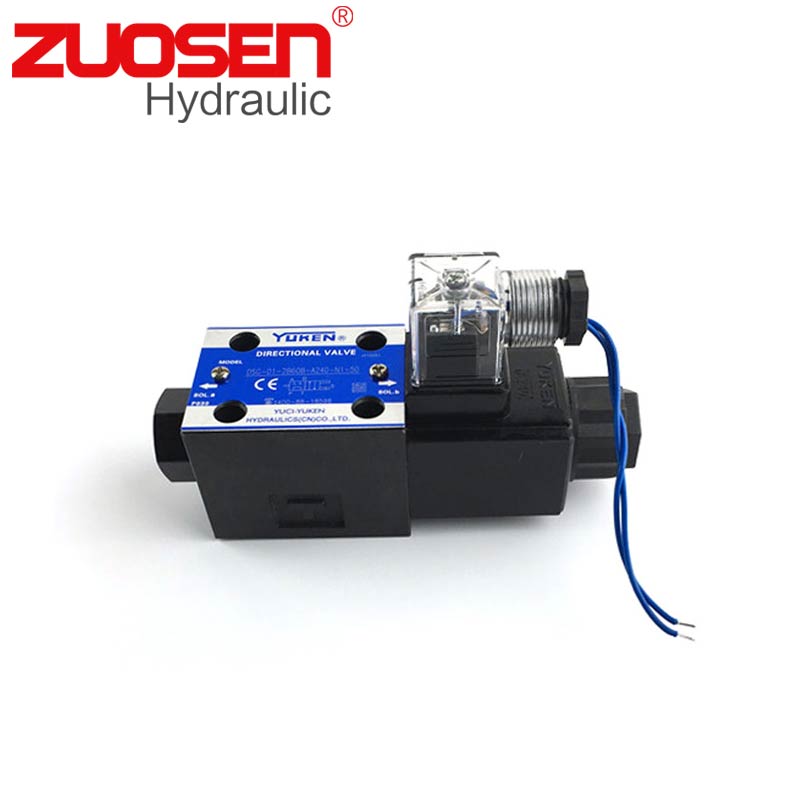

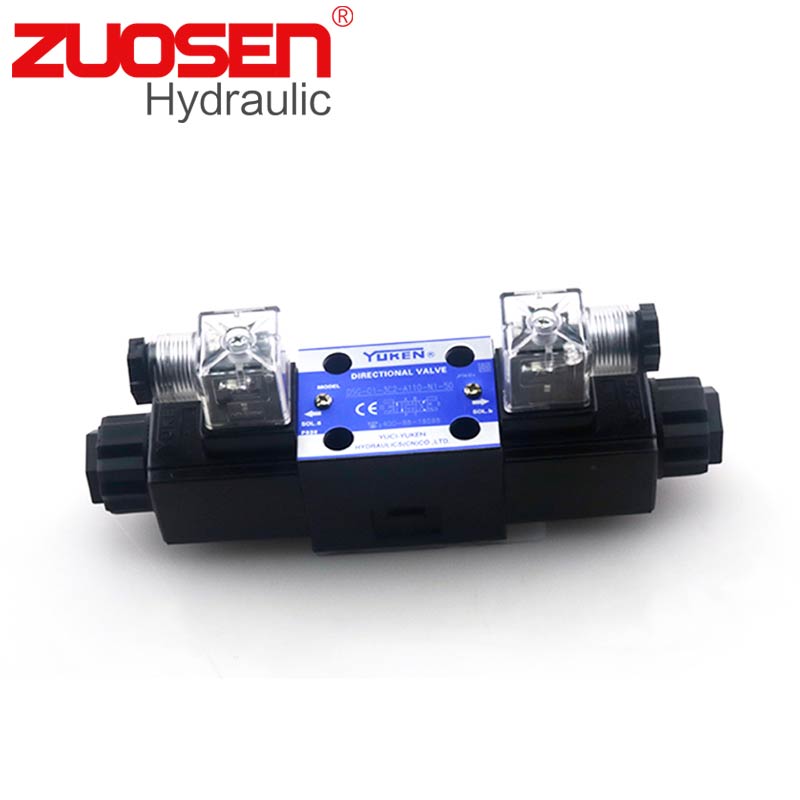

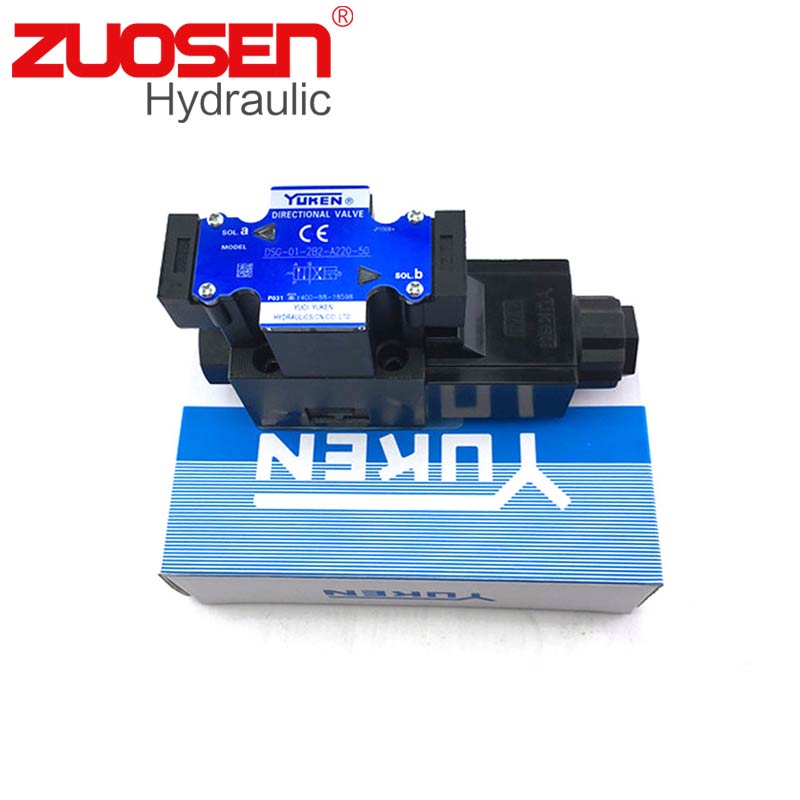

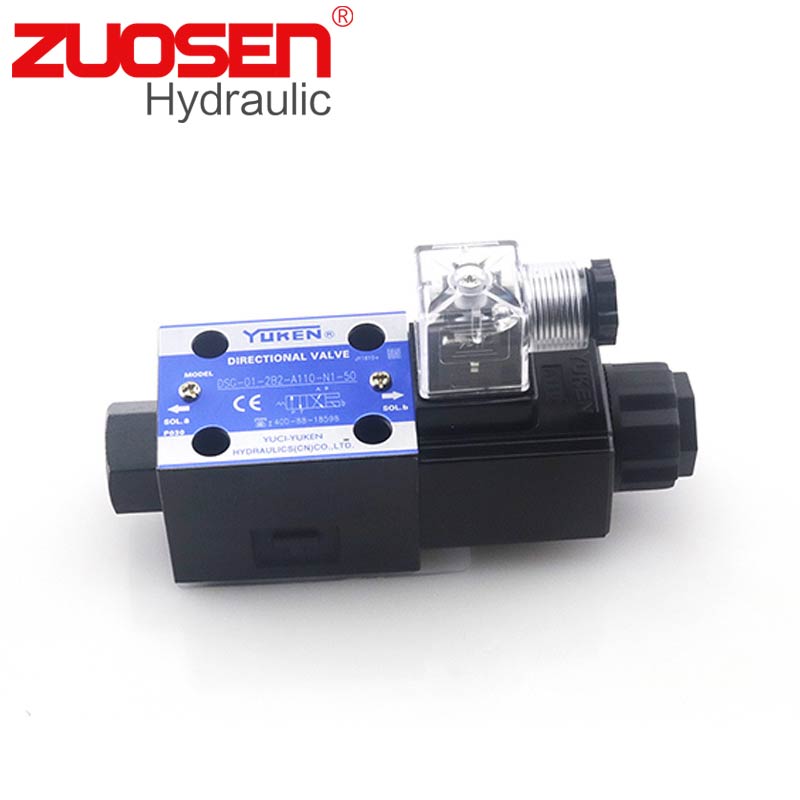

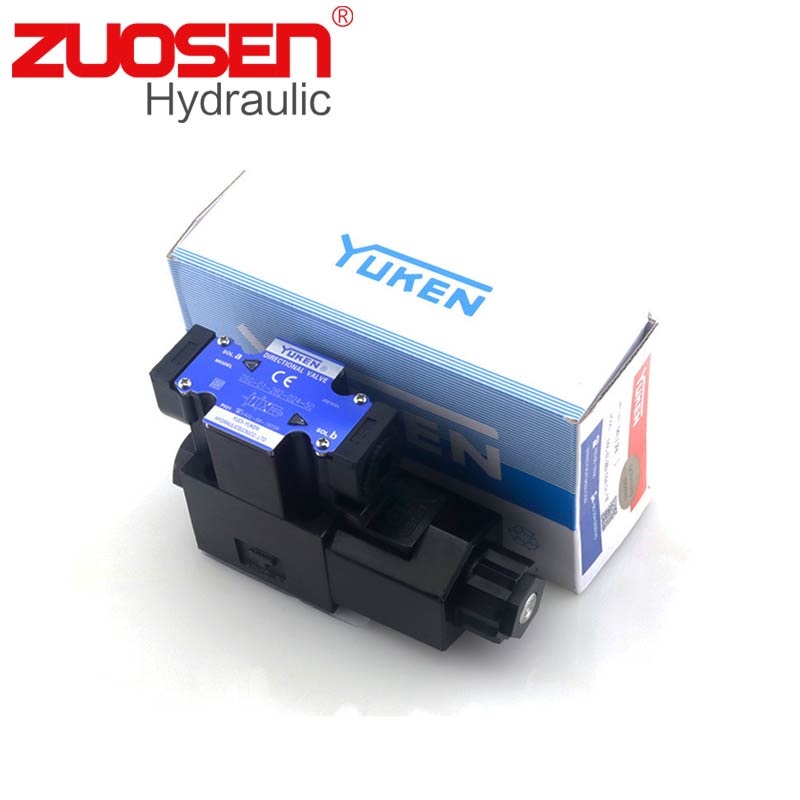

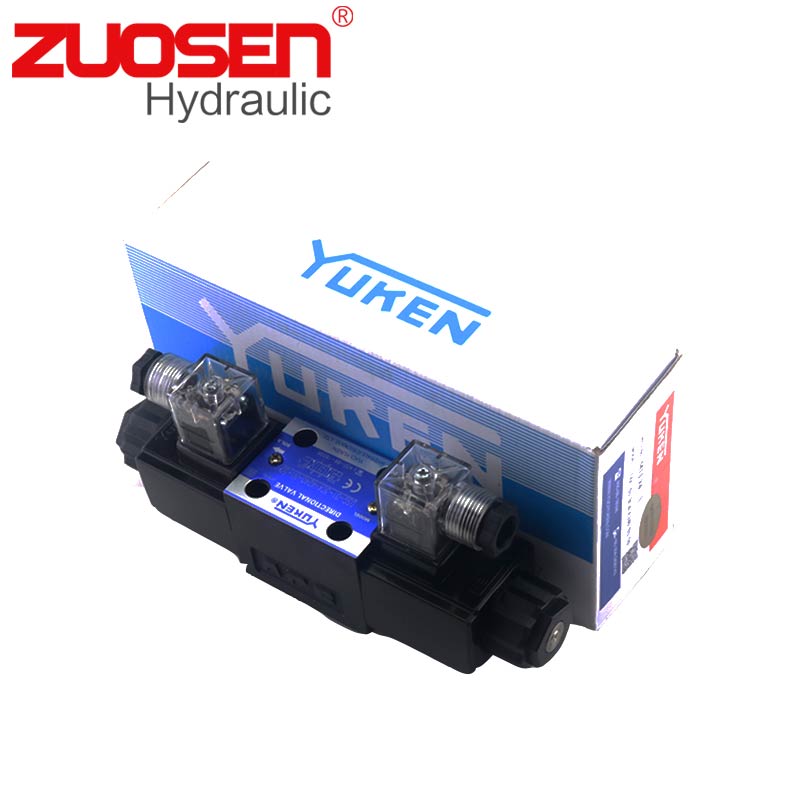

Yuken Directional Valve DSG-01-3c60-a240-n1-50

$20.00

  • Brand: ZUOSEN HYDRAULIC
  • Availability: In Stock
Model No.

Tags: Directinal contrl valves , DSG-01 , Hydraulic Valves , valve , Yuken

Yuken Directional Valve DSG-01-3c60-a240-n1-50


Specifications

Valve Type

Model Numbers
Max. Flow★2
L/min  (U.S.GPM)
Max. Operating  Pressure  MPa (PSI) Max. T-Line  Back Pressure  MPa (PSI) Max. Changeover  Frequency  Cycle/min {min–1} Mass  kg  (lbs.)

Standard Type
DSG-01-3C - -70/7090

100
(26.4)

35
(5080)

21
(3050)
300
R Type Sol. Only  120
1.85
(4.08)
DSG-01-2D2- -70/7090
DSG-01-2B - -70/7090
1.4(3.09)
Shockless Type
S-DSG-01-3C - -70/7090
63
(16.6)
25
(3630)
21
(3050)
120 1.85(4.08)
S-DSG-01-2B2- -70/7090
1.4(3.09)

Low Wattage(14W)  Type ★1
L-DSG-01-3C - -70/7090

40
(10.6)

16
(2320)

16
(2320)

300
R Type Sol. Only  120

1.85
(4.08)
L-DSG-01-2D2- -70/7090
L-DSG-01-2N - -70/7090
L-DSG-01-2B - -70/7090
1.4(3.09)
Sub-plate
Piping  Size Japanese Standard "JIS " European Design Standard N.American Design Standard
Sub-plate  Model Numbers Thread  Size Sub-plate  Model Numbers Thread  Size Sub-plate  Model Numbers Thread  Size
1/8
DSGM-01-31
Rc 1/ 8 DSGM-01-3180 1/8 BSP. F DSGM-01-3190 1/8 NPT 0.8 (1.8 )
1/4
DSGM-01X-31
Rc 1/ 4 DSGM-01X-3180 1/4 BSP. F DSGM-01X-3190 1/4 NPT 0.8 (1.8 )
3/8
DSGM-01Y-31
Rc 3/ 8 DSGM-01Y-3190 3/8 NPT 0.8 (1.8 )
Mounting Bolt
Descriptions Soc. Hd. Cap Screw (4 pcs.) Tightening Torque
Japanese Standard "JIS"  European Design Standard M5  45 Lg. 5 - 7 Nm (43 - 60 in. 1bs.)
Applicable to working pressure more than  25 MPa (3630 PSI): 6 - 7 Nm (52 - 60 in. 1bs.)
N. American Design Standard No. 10-24 UNC  1-3/4 Lg.
List of Seals
Item Name of Parts Part Numbers Qty. Remarks
3C 2D 2B
8 O-Ring SO-NB-A-012 (NBR, Hs90) 4 4 4
9 O-Ring SO-NB-P18 1
18 Packing 1790S-VK421290-8 1 1 1
19 O-Ring S6 2 2 2
24 O-Ring AS 568-026 (NBR, Hs70) 2 2 1 Included in Solenoid Ass'y (Item 11)
25 O-Ring SO-NB-P18 2 2 1
26 O-Ring SO-NA-P20 2 2 1
27 O-Ring SO-NA-P4 4 4 2
30 Plug 1790S-VK418329-9 2
When ordering the O-Rings, please specify the seal kit number from the table below.


FAQ

Q: Are you trading company or manufacturer?

Re: We are manufacturer.
Q: How long is the Warranty?
Re: One-year warranty.
Q: What is your payment terms?
Re: 100%  in advance, long-term dealer 30% in advance, 70% before shipping.
Q: How about the delivery time?
Re: Normal Models within 2 days, unusual models and bulk order within 5-10 days.
