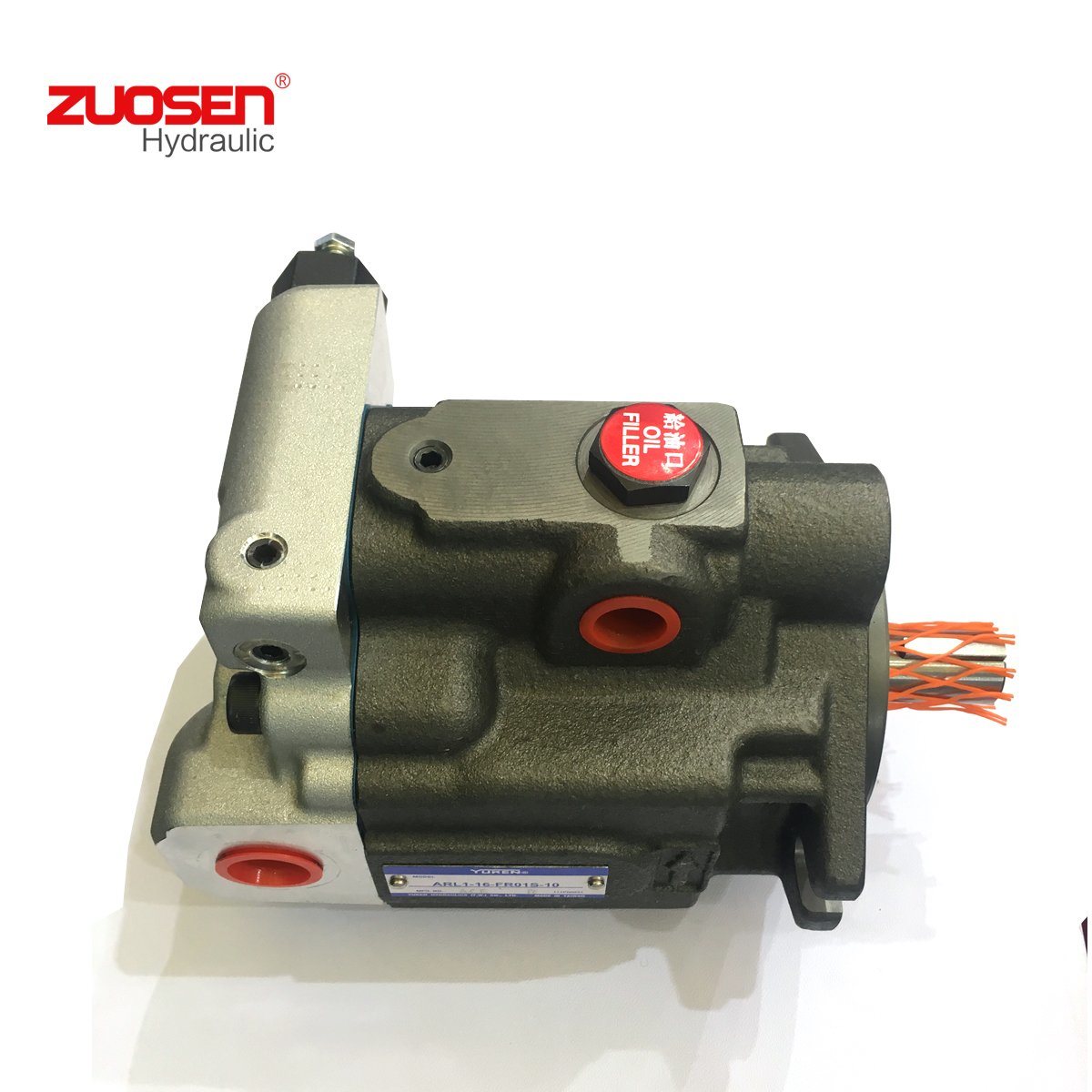

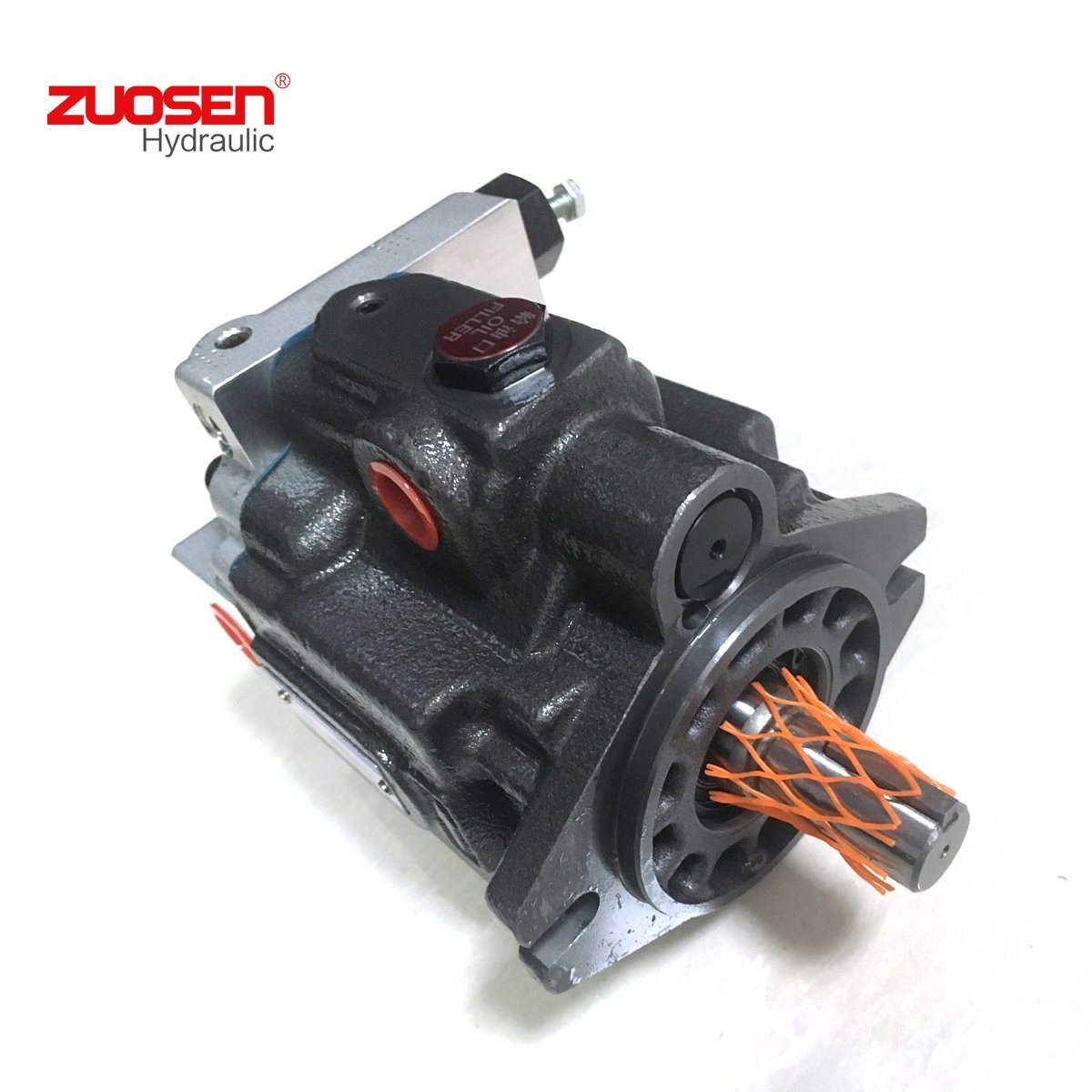

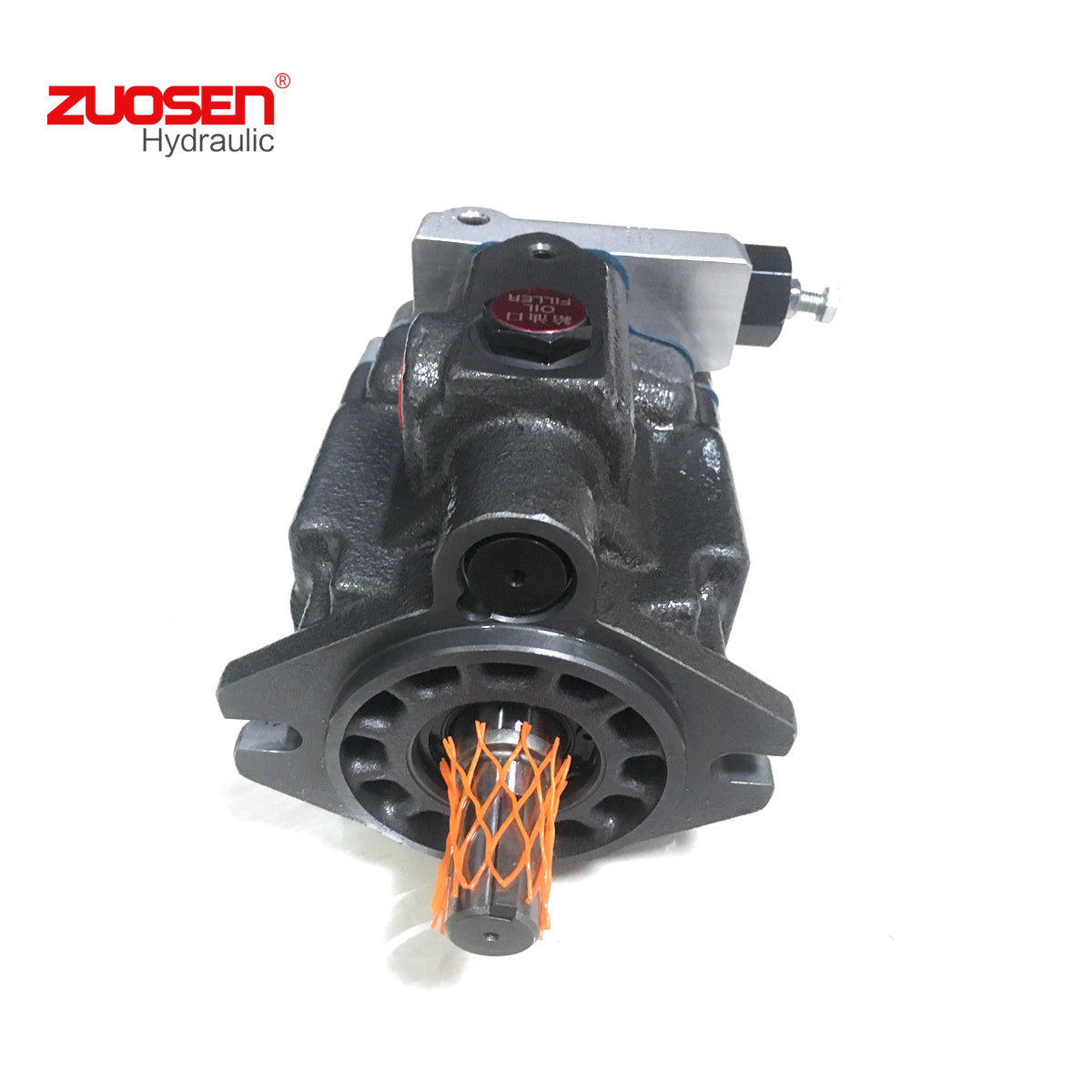

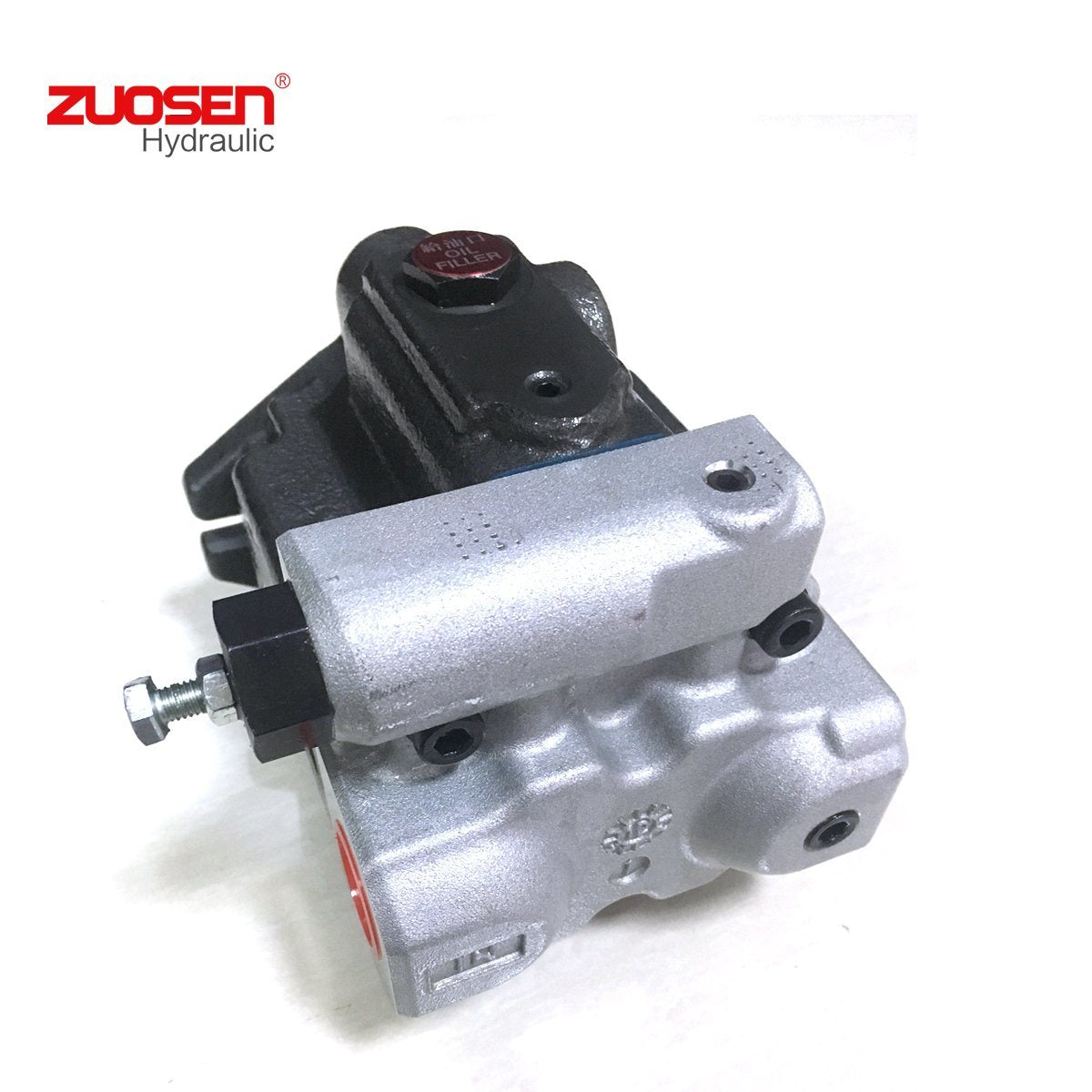

Yuken Hydraulic Axial Piston Pump ARL1

$365.00

  • Brand: ZUOSEN HYDRAULIC
  • Availability: In Stock
Model No.

Tags: ARL1 , piston pump , Yuken

Instructions

Mounting

When installing the pump the filling port should be positioned  upwards.

Alignment of Shaft

Employ a flexible coupling whenever possible, and avoid  any stress from bending or thrust.

Maximum permissible misalignment is less than 0.1 mm  TIR and maximum permissible misangular is less than  0.2°.

Suction Pressure

Permissible suction pressure at inlet port of the pump is  between -16.7 and +50 kPa.

For piping to the suction port, use the pipes of the same  diametre as that of the specified pipe flange to be used.

Make sure that the height of the pump suction port is  within one metre from the oil level in the reservoir.

Hints on Piping

When using steel pipes for the suction or discharge ports,  excessive load from the piping to the pump generates  excessive noise.

Whenever there is fear of excessive load, please use rubber  hoses.

Suction Piping

In case the pump is installed above the oil level, the  suction piping and suction line filter should be located  lower than the pump position to prevent air in the suction  line.

Drain Piping

Install drain piping according to the chart and ensure that  pressure within the pump housing should be maintained at  a normal pressure of less than 0.1 MPa and surge pressure  of less than 0.5 MPa.

Length of piping should be less than 1 m, and the pipe end  should be submerged in oil.

In case ARL1 pump, a screw-in torque of fitting is 55 to  75 Nm. Do not apply bending and thrust torque to the  fitting.

Bleeding Air

It may be necessary to bleed air from pump case and  outlet line to remove causes of vibration. An air bleed

valve  (Model  Number   ST1004-*-10*,   Page   265) is

recommended for this purpose.


ARL1 Series Piston Pumps Specifications


Model Numbers
Geometric  Displacement  cm3/rev Minimum Adj.
Pressure  MPa
Max. Operating  Pressure
MPa
Shaft Speed Range  r/min
Approx. Mass  kg
Max. Min.
ARL1-6-R01-10
6.2


1.2



7



1800



600

6.8
Flange Mtg.)  9.0
Foot Mtg.
ARL1-8-R01-10
8.5
ARL1-12-R01-10
12.3
ARL1-16-R01-10
16.3
Model Number Designation

ARL1

-6 -F R 01 S -10

Series Number
Geometric  Displacement
Mounting
Direction of  Rotation
Control Type

Port Position

Design Number


ARL1
6:6.2 cm3/rev  8:8.5 cm3/rev  12:12.3 cm3/rev  16:16.3 cm3/rev
F:Flange Mtg.
L:Foot Mtg.

(Viewed from  Shaft End)  R:Clockwise

01:Pressure
Compensator  Type
S:Side Port
(Standard)
A:Suction Port  Position: Down  Wards


10

Foot mounting is available only for side ported type.


1634104783733548



FAQ

Q: Are you trading company or manufacturer?

Re: We are manufacturer.
Q: How long is the Warranty?
Re: One-year warranty.
Q: What is your payment terms?
Re: 100%  in advance, long-term dealer 30% in advance, 70% before shipping.
Q: How about the delivery time?
Re: Normal Models within 2 days, unusual models and bulk order within 5-10 days.
