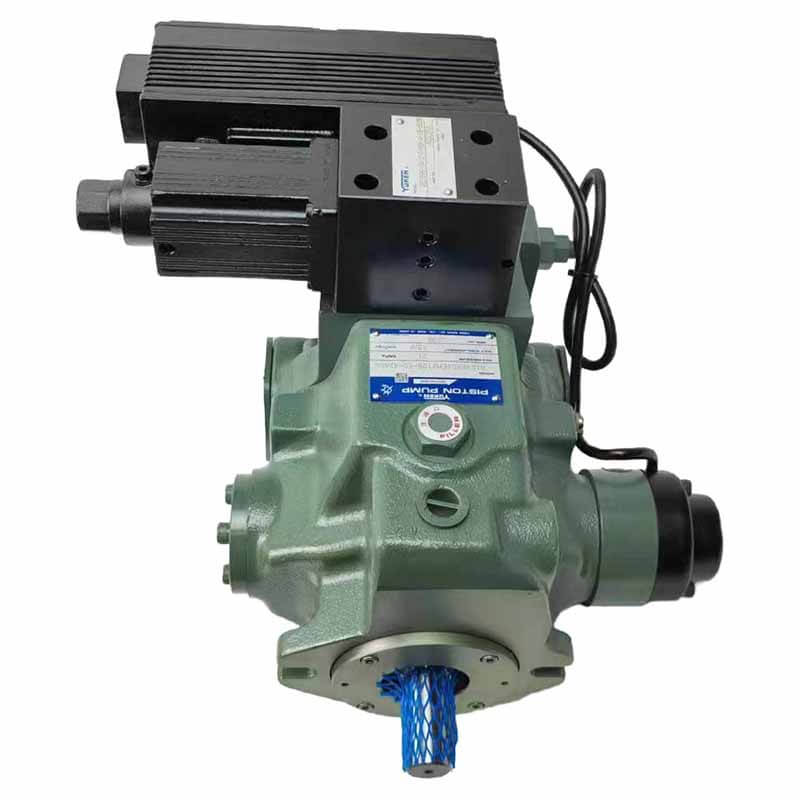

A16-FR04EH210S-60-42462 Yuken Piston Pump Hydraulic Axial Piston Pump
| Model | A16 | A22 | A37 | A45 | A56 | A70 | A90 | A100 | A145 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Geometric Displacement | cm3/rev | 15.8 | 22.2 | 36.9 | 45 | 56.2 | 70 | 91.0 | 100.0 | 145.0 | |
| Operating Pressure MPa (PSI) |
Rated | 16 | 16 | 16 | 16 | 16 | 25 | 25 | 21 | 25 | |
| Intermittent | 21 | 16 | 21 | 17.2 | 21 | 28 | 28 | 21 | 28 | ||
| Shaft Speed Range | r/min | 600 - 1800 | |||||||||
| Flow Control | Max. Flow | L/min | 28.4 | 40.0 | 66.4 | 81.0 | 101.0 | 126.0 | 163.0 | 180.0 | 261.0 |
| Min. Pres. Required for Flow Adj. | MPa | 2.0 | |||||||||
| Hysteresis | 1 % or less | ||||||||||
| Repeatability | 1 % or less | ||||||||||
| Input Signal | Max. Flow / 5 V DC | ||||||||||
| Pressure Control | Min. Adjustment Pressure | MPa | 0.7 | ||||||||
| Hysteresis | 1 % or less | ||||||||||
| Repeatability | 1 % or less | ||||||||||
| Input Signal | Specified Control Pressure / 5 V DC | ||||||||||
| Coil Resistance | [@ 20°C (68 °F)] | 10 | |||||||||
| Input Impedance | Flow Control : 10 kΩ Pressure Control : 10 kΩ | ||||||||||
| Supply Electric Power | 24 V DC (21 - 28 V Included Ripple) | ||||||||||
| Power Input (Max.) | W | 30 | |||||||||
| Output Signal | Flow | 5 V DC/Max. Flow | |||||||||
| Pressure | 5 V DC/Specified Control Pressure | ||||||||||
| Alarm Signal Output (Open Collector) | Voltage : Max. 30 V DC Current : Max. 40 mA | ||||||||||
| Ambient Temperature | ℃（℉） | 0 - 50 (32 - 122) (With Circulated Air) | |||||||||
| Approx. Mass kg (lbs.) |
Flange Mtg. | 20.5 | 20.5 | 32.0 | 32.0 | 39.0 | 64.0 | 76.5 | 76.5 | 96.4 | |
| Foot Mtg. | 22.7 | 22.7 | 36.3 | 36.3 | 43.3 | 76.0 | 97.0 | 97.0 | 121.4 | ||
