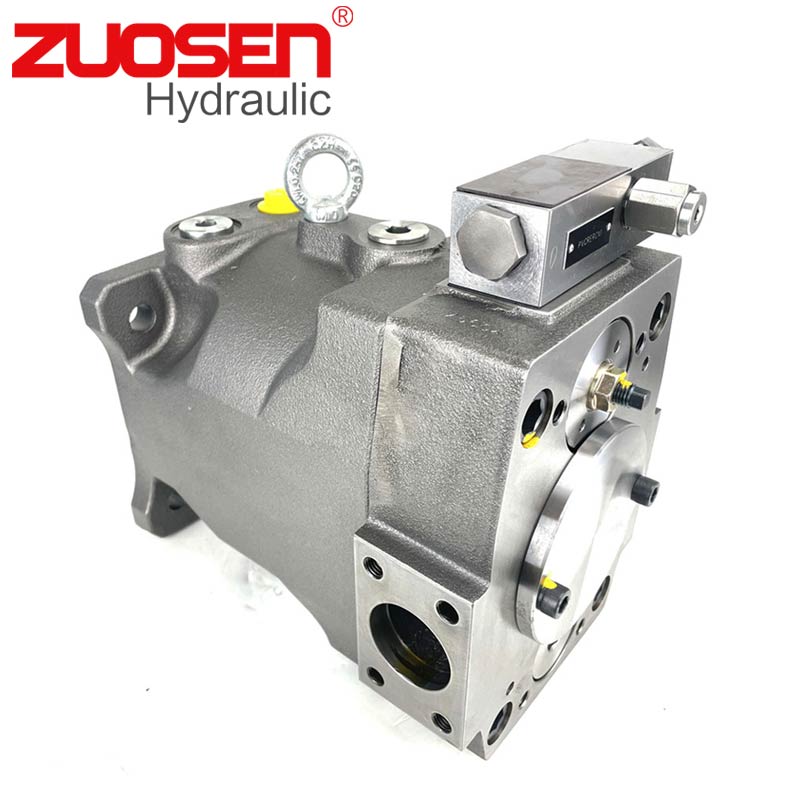

Parker Denison hydraulic Piston Pumps PV Series

$850.00

  • Brand: ZUOSEN HYDRAULIC
  • Availability: In Stock
Model

Tags: Denison , hydraulic pump , Parker , Parker PV016 , Parker PV270 , piston pump

Specifications

PV016 PV020 PV023 PV028 PV032 PV040 PV046
Frame size 1 1 1 1 2 2 2
Max. displacement [cm3/rev.] 16 20 23 28 32 40 46
Output flow at 1500 rpm [l/min] 24 30 34,5 42 48 60 69
Nominal pressure pN [bar] 350 350 350 350 350 350 350
Min. outlet pressure [bar] 15 15 15 15 15 15 15
Max. pressure pmax at  20 % working cycle1) [bar] 420 420 420 420 420 420 420
Case drain pressure, continuous [bar] 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Case drain pressure, max. peak [bar] 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Min. inlet pressure, abs. [bar] 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Max. inlet pressure [bar] 16 16 16 16 16 16 16
Input power at 1500 rpm and 350 bar [kW] 15.9 19.7 22.4 26.9 31.1 38.5 43.8
Max. input torque at 350 bar [Nm] 94.5 118.1 135.9 165.4 184.3 230.4 265.0
Max speed at 1 bar, abs, inlet pressure [rpm] 3000 3000 3000 3000 2800 2800 2800
Min. speed [rpm] 50 50 50 50 50 50 50
Moment of inertia [kgm2] 0.0016 0.0016 0.0016 0.0016 0.0047 0.0047 0.0047
Weight [kg] 19 19 19 19 30 30 30
