🔍 Introduction: Pressure Inconsistency in Injection Molding—A Hidden Culprit

In precision injection molding, stable holding pressure during the packing phase is crucial for part quality. If pressure fluctuates, you may face defects like sink marks, warpage, or flash. Many manufacturers focus on mold temperature or materials—but the piston pump powering your hydraulic system may be the root cause.

Let’s examine how ZUOSEN P08-A3-L-L-16 piston pump is specifically engineered to solve this common pain point in hydraulic systems of injection machines.

⚙️ Why Piston Pumps Are Critical in Pressure Holding

During the holding phase, the hydraulic pump must maintain constant pressure (typically 10–15 MPa) to ensure the cavity is fully packed before the plastic solidifies. Here, the piston pump acts as the heart of the hydraulic circuit, converting mechanical energy into smooth, continuous hydraulic power.

If your pump’s flow is unstable, the results are:

💥 Pressure drops → short shots, shrinkage

⚠️ Pressure spikes → flash, mold damage

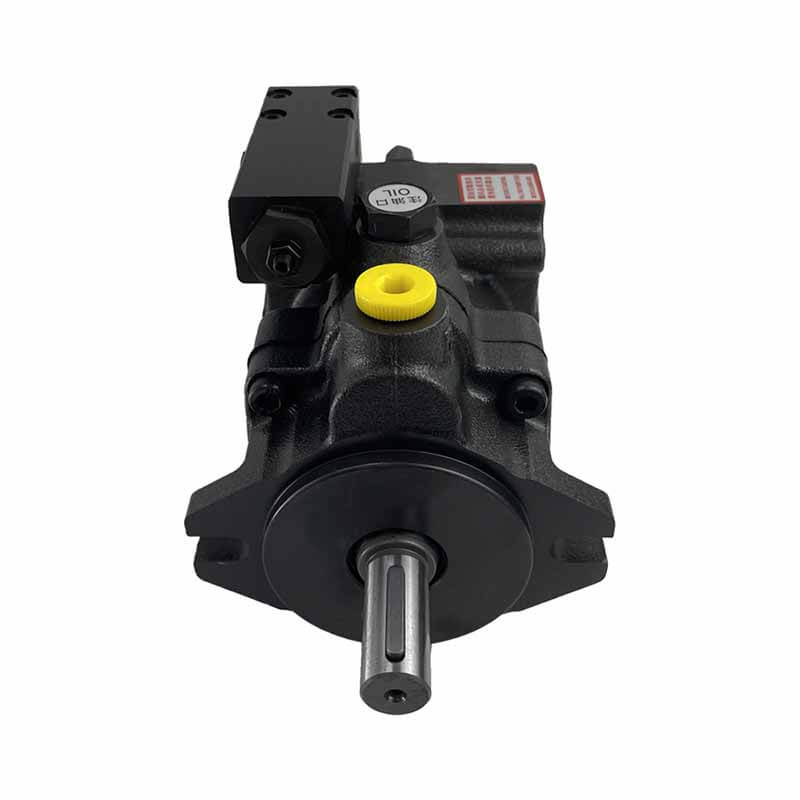

🔧 ZUOSEN P08-A3-L-L-16 piston pump is widely used in 500–1000 ton injection molding machines, delivering precise flow control and ultra-stable pressure holding.

📊 1. Ultra-Low Pressure Ripple (±0.8%)

Holding pressure ripple must stay within ±1% of set pressure to ensure part consistency. For example:

At 15 MPa holding pressure, ripple variation must remain within ±0.15 MPa

✅ The P08-A3-L-L-16 hydraulic pump delivers ±0.8% pressure ripple, thanks to:

Optimized swash plate geometry

Tight tolerance matching between piston and valve plate

Balanced internal flow path that minimizes pulsation

⚡ 2. Fast Transient Response (≤0.5s)

Switching from injection to holding pressure must be nearly instantaneous—otherwise, there's a risk of volume loss and internal voids in the molded part.

The P08-A3-L-L-16 piston pump ensures:

Response time ≤ 0.5 seconds

Smooth transition thanks to preloaded valve plate and high-response spool design

Improved control over part shrinkage and final dimensional accuracy

➡️ Compared to standard designs, this model achieves up to 20% faster pressure stabilization, making it ideal for precision molding of 3C and medical parts.

🔩 3. Reliable Pressure Capacity for Harsh Conditions

Injection molding is a high-stress application. The pump must tolerate both sustained and peak loads:

Operating Pressure Value
Continuous 16–20 MPa (160–200 bar)
Peak (short-term) 25.5 MPa (255 bar)

💪 ZUOSEN reinforces key components like:

High-strength pistons

Hardened cylinder block

Heavy-duty valve plate & cast iron casing

These upgrades allow stable operation under cyclic loads and thermal expansion, common in 24/7 production.

🧠 Sizing & Application Fit for 500–1000 Ton Machines

The P08-A3-L-L-16 piston pump offers:

Displacement: 8 cc/rev

Perfect for medium-size injection machines (500–1000 tons)

Matches holding stage flow rates of 10–30 L/min

🔧 Maintenance Best Practices

To ensure long life and stable output:

🔁 Replace hydraulic oil every 2000 hours

🧼 Clean suction filters monthly

🌡️ Keep pump casing temp ≤ 60°C to prevent seal degradation and oil aging

These preventive steps directly extend pump life and reduce unplanned downtime.

🔄 Drop-In Replacement for Industry-Standard Models

ZUOSEN P08-A3-L-L-16 plunger pump is designed with:

Standardized mounting holes

Matching shaft and port dimensions

Compatibility with HHPC pump series

✅ This allows for direct replacement without re-piping or baseplate changes, making it easy to upgrade under pressure.

🧭 Final Thoughts: Solve Molding Pressure Issues at the Source

If your injection machine suffers from inconsistent holding pressure, the problem may lie in your piston pump—not your mold or material.

ZUOSEN P08-A3-L-L-16 piston pump offers:

✅ Ultra-low pressure ripple (±0.8%)

✅ Fast response (<0.5s)

✅ Robust structure for 25.5 MPa peak pressure

✅ Seamless fit for 500–1000T machines
